    • [Seek Help] usb驱动也加载了，怎么还是没有呢
    Experiences and Insight 2049 views · 7 replies ·
    Tofloor
    poster avatar
    158******75
    deepin
    2022-03-05 00:29
    Author

    tplink的 300M无线网卡

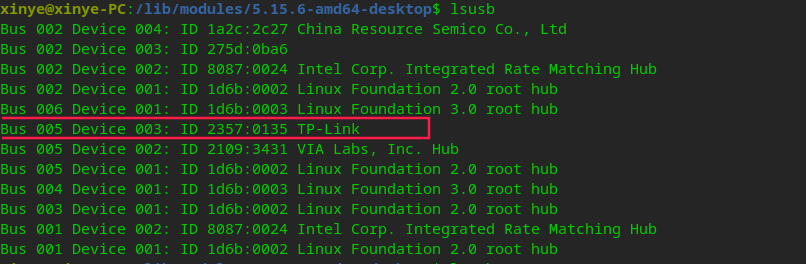

    百度上 可能 硬件id 对不上，我也加了

    echo "2357 0135" | sudo tee /sys/bus/usb/drivers/rtl8192cu/new_id

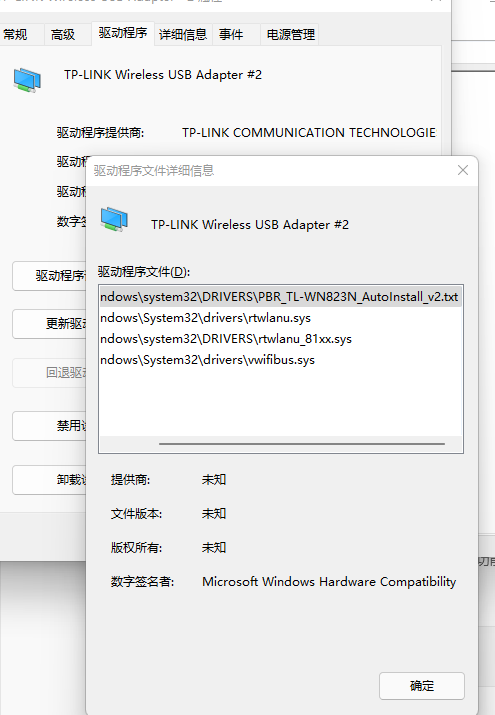

    windows下驱动是这样子的


    Reply Favorite View the author
    All Replies
    lcw0268
    deepin
    2022-03-05 01:02
    #1
    It has been deleted!
    林统度
    deepin
    2022-03-05 01:33
    #2

    试一试下载驱动重新安装tail

    Reply View the author
    158******75
    deepin
    2022-03-05 05:36
    #3
    lcw0268： It has been deleted!

    我不知道是什么芯片，买的时候写着 TL-WN832N 300M

    Reply View the author
    lcw0268
    deepin
    2022-03-05 06:17
    #4
    It has been deleted!
    Zz
    deepin
    2022-04-04 17:22
    #5

    这款应该是8188GU芯片

    Reply View the author
    高兴福
    deepin
    2023-04-18 23:44
    #6
    It has been deleted!
    高兴福
    deepin
    2023-04-18 23:49
    #7

    下载这个https://github.com/BrightX/rtl8192fu

    修改os_dep\linux\usb_intf.c，大约在250行位置，修改如下

    #ifdef CONFIG_RTL8192F

    / === Realtek demoboard === /
    {USB_DEVICE_AND_INTERFACE_INFO(USB_VENDER_ID_REALTEK, 0xF192, 0xff, 0xff, 0xff), .driver_info = RTL8192F}, /* 8192FU 22 /
    {USB_DEVICE_AND_INTERFACE_INFO(0x2357, 0x0135, 0xff, 0xff, 0xff), .driver_info = RTL8192F}, /     增加这行 /
    {USB_DEVICE_AND_INTERFACE_INFO(USB_VENDER_ID_REALTEK, 0xA725, 0xff, 0xff, 0xff), .driver_info = RTL8192F}, /     8725AU 2    2 */
    #endif

    最后按上面的github链接编译安装，在ubuntu22.04上亲测有效

    sudo usb_modeswitch -K -v 0bda -p a192
    [sudo] g 的密码：
    Look for default devices ...
    Found devices in default mode (1)
    Access device 009 on bus 001
    Get the current device configuration ...
    Current configuration number is 1
    Use interface number 0
    with class 8
    Use endpoints 0x0b (out) and 0x8a (in)
    Sending standard EJECT sequence
    Looking for active drivers ...
    OK, driver detached
    Set up interface 0
    Use endpoint 0x0b for message sending ...
    Trying to send message 1 to endpoint 0x0b ...
    OK, message successfully sent
    Read the response to message 1 (CSW) ...
    Response successfully read (13 bytes), status 1
    Trying to send message 2 to endpoint 0x0b ...
    OK, message successfully sent
    Read the response to message 2 (CSW) ...
    Response successfully read (13 bytes), status 0
    Trying to send message 3 to endpoint 0x0b ...
    OK, message successfully sent
    Read the response to message 3 (CSW) ...
    Device seems to have vanished after reading. Good.
    Device is gone, skip any further commands
    -> Run lsusb to note any changes. Bye!

    lsusb -tv
    /: Bus 02.Port 1: Dev 1, Class=root_hub, Driver=xhci_hcd/4p, 5000M
    ID 1d6b:0003 Linux Foundation 3.0 root hub
    /: Bus 01.Port 1: Dev 1, Class=root_hub, Driver=xhci_hcd/10p, 480M
    ID 1d6b:0002 Linux Foundation 2.0 root hub
    |__ Port 6: Dev 10, If 0, Class=Vendor Specific Class, Driver=rtl8192fu, 480M
    ID 2357:0135 TP-Link
    |__ Port 8: Dev 2, If 0, Class=Human Interface Device, Driver=usbhid, 1.5M
    ID 413c:2107 Dell Computer Corp. KB212-B Quiet Key Keyboard

    Reply View the author
