好看！但是这是什么？

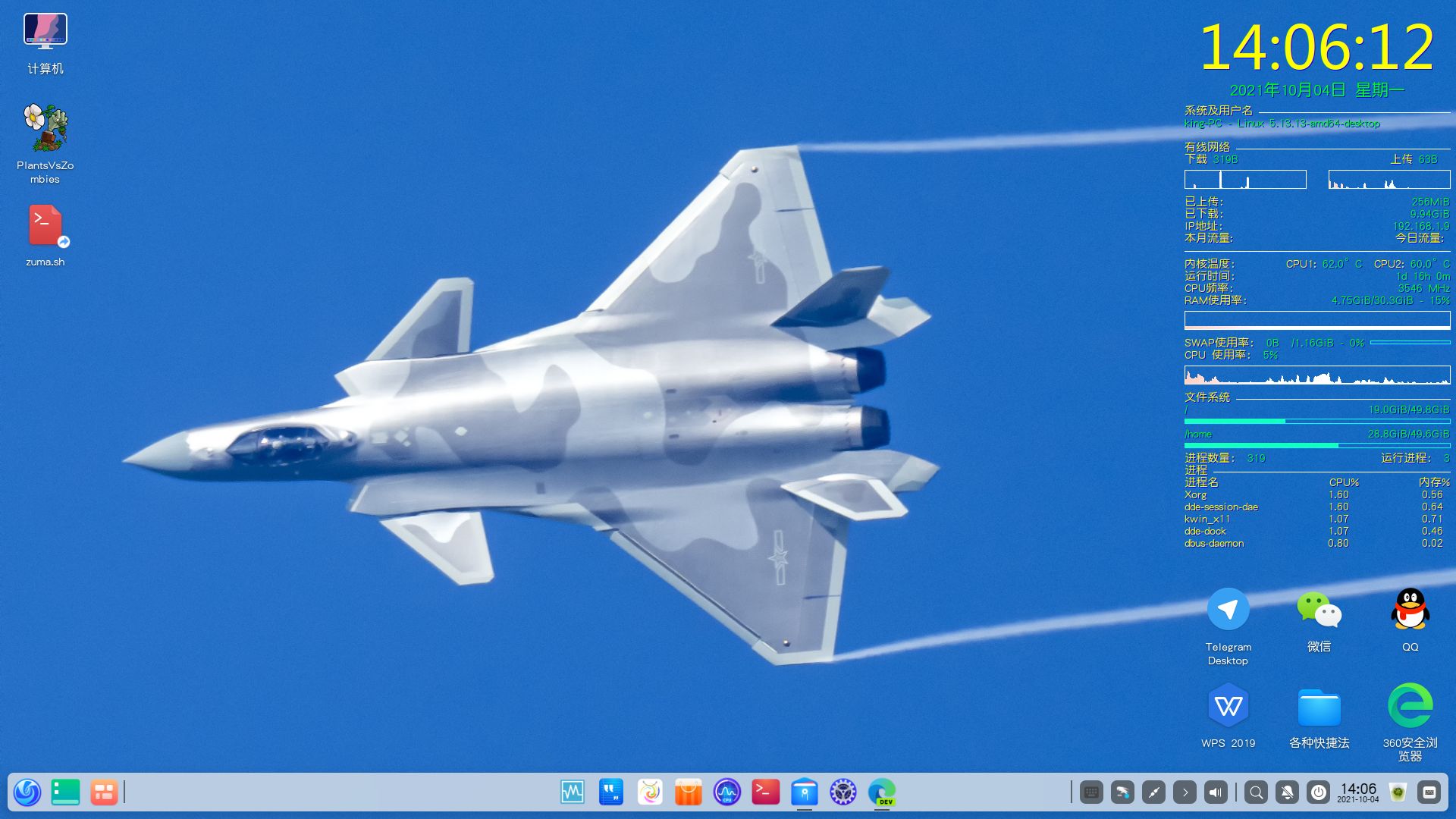

桌面监控  看截图的右侧。

厉害哦兄弟，你这个配置文件可以分享一下嘛

壁纸好评

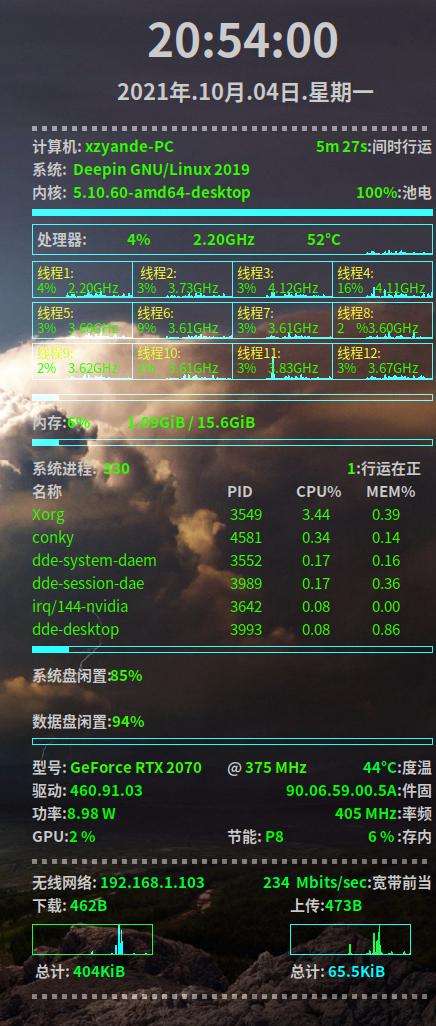

这是我自己记录的，一些参数要调整，分辨率，缩放倍数，屏幕不一样可能排版出来有差异

显卡要安装独显才能显示，网络参数换自己的

我的CPU是AMD3600，如果是英特尔的可能显示不一样

我直接贴上来

安装

sudo apt install conky

执行 sudo dedit ~/.conkyrc

复制以下到conkyrc保存

#是否嵌入桌面，“no”表示不嵌入；“yes”表示嵌入

background yes

double_buffer yes

alignment top_right             #对齐右上方

border_width 1                  #边框宽度

cpu_avg_samples 2               #CPU数据监测?

default_color white             #默认颜色

default_outline_color white     #默认轮廓颜色

default_shade_color white       #默认阴影颜色

draw_borders no                 #整体线框

draw_graph_borders yes          #CPU线框

draw_outline no                 #字体轮廓

draw_shades no                  #字体阴影

gap_x 0                         #横坐标

gap_y 0                         #纵坐标

net_avg_samples 2               #网络数据监测?

no_buffers yes

out_to_console no

out_to_stderr no

extra_newline no

own_window yes                  #自己的窗口

own_window_type dock  'normal', 'dock', 'panel', 'desktop', 'override'.

own_window_transparent yes      #背景透明

own_window_colour 000000

own_window_argb_visual yes

own_window_argb_value 0

own_window_hints undecorated,below,sticky,skip_taskbar,skip_pager

#minimum_size 350 750       #范围最小

#maximum_width 390 900      #范围最大

stippled_borders 1

update_interval 1.0        #刷新时间

uppercase  no              #默认大写字母

use_spacer none

show_graph_scale no

show_graph_range no

use_xft yes                    #是否使用xft字体

xftalpha 1

xftfont Ubuntu:size=12

font WenQuanYi Zen Hei:size=12

xftfont WenQuanYi Zen Hei:size=12

TEXT

# **********************************************************************

# 时间

# **********************************************************************

${color cccccc}${font WenQuanYi:bold:pixelsize=46}${goto 120}${time %H:%M:%S}

${color cccccc}${font WenQuanYi:bold:pixelsize=22}${voffset -20}${goto 90}${time %Y年.%m月.%d日.%A}

# **********************************************************************

# Computer info

# **********************************************************************

${color 666666}${stippled_hr 5}

${color cccccc}${font WenQuanYi:bold:size=9}计算机:${color 33ff00} ${nodename}$alignr${uptime_short}${color cccccc}:间时行运

系统:  ${color 33ff00}${exec cat /etc/issue.net}

${color cccccc}内核:  ${color 33ff00}${kernel} $alignr${battery_percent}%${color cccccc}:池电

${color 00ffff}${battery_bar}${voffset -2}

# **********************************************************************

# CPU

# **********************************************************************

${color 00ffff}${cpugraph cpu0 30,400}

${font WenQuanYi:bold:size=9}${voffset -36}${goto 10}${color cccccc}处理器:${color 33ff00}${goto 100}${cpu}%${goto 166}${freq_g}GHz ${goto 280}${acpitemp}°C

${voffset -10}

${color 00ffff}${voffset 3}${cpugraph cpu1 36,100}${cpugraph cpu2 36,100}${cpugraph cpu3 36,100}${cpugraph cpu4 36,100}${voffset -18}

${cpugraph cpu5 36,100}${cpugraph cpu6 36,100}${cpugraph cpu7 36,100}${cpugraph cpu8 36,100}${voffset -18}

${cpugraph cpu9 36,100}${cpugraph cpu10 36,100}${cpugraph cpu11 36,100}${cpugraph cpu12 36,100}${font WenQuanYi:size=8}

${voffset -120}${color ffff33}${goto 10}线程1:${goto 110} 线程2:${goto 210}线程3:${goto 310}线程4:

${voffset 19}${goto 10}线程5: ${goto 110}线程6: ${goto 210}线程7:${goto 310}线程8:

${voffset 19}${goto 10}线程9: ${goto 110}线程10: ${goto 210}线程11:${goto 310}线程12:

${voffset -76} ${color 33ff00}${goto 10}${cpu cpu1}%    ${freq_g 1}GHz${goto 110}${cpu cpu2}%    ${freq_g 2}GHz ${goto 210}${cpu cpu3}%    ${freq_g 3}GHz${goto 310}${cpu cpu4}%    ${freq_g 4}GHz

${voffset 19}                 ${goto 10}${cpu cpu5}%    ${freq_g 5}GHz${goto 110}${cpu cpu6}%    ${freq_g 6}GHz${goto 210}${cpu cpu7}%    ${freq_g 7}GHz ${goto 310}${cpu cpu8}    %${freq_g 8}GHz

${voffset 19}                 ${goto 10}${cpu cpu9}%    ${freq_g 9}GHz${goto 110}${cpu cpu10}%    ${freq_g 10}GHz ${goto 210}${cpu cpu11}%    ${freq_g 11}GHz ${goto 310}${cpu cpu12}%    ${freq_g 12}GHz${voffset 6}

# **********************************************************************

# 内存

# **********************************************************************

${voffset -10}

${color 00ffff}$membar

${color cccccc}${font WenQuanYi:bold:size=9}内存:${color 33ff00}$memperc% ${goto 100}$mem / $memmax

${color 00ffff}$membar

# **********************************************************************

# 运行中的进程

# **********************************************************************

${color cccccc}${font WenQuanYi:bold:size=9}系统进程: ${color 33ff00} $processes${goto 320}$running_processes${color cccccc}:行运在正

${color cccccc}名称${goto 200}PID${goto 269}CPU%${goto 339}MEM%${color 33ff00}${font WenQuanYi:size=9}

${top name 1}${goto 200}${top pid 1}${goto 269}${top cpu 1}${goto 339}${top mem 1}

${top name 2}${goto 200}${top pid 2}${goto 269}${top cpu 2}${goto 339}${top mem 2}

${top name 3}${goto 200}${top pid 3}${goto 269}${top cpu 3}${goto 339}${top mem 3}

${top name 4}${goto 200}${top pid 4}${goto 269}${top cpu 4}${goto 339}${top mem 4}

${top name 5}${goto 200}${top pid 5}${goto 269}${top cpu 5}${goto 339}${top mem 5}

${top name 6}${goto 200}${top pid 6}${goto 269}${top cpu 6}${goto 339}${top mem 6}

#**********************************************************************

#硬盘

#**********************************************************************

${color 00ffff}${fs_bar /}

${font WenQuanYi:bold:size=9}${color cccccc}系统盘闲置:${color 33ff00}${goto 80} ${fs_free_perc /}%

${color cccccc}数据盘闲置:${color 33ff00}${goto 85}${fs_free_perc /home}%

${color 00ffff}${fs_bar /home}

#**********************************************************************

# Nvidia GPU

#**********************************************************************

${color cccccc}${font WenQuanYi:bold:size=9}型号: ${color 33ff00}${execpi .001 (nvidia-smi --query-gpu=gpu_name --format=csv,noheader)} ${color cccccc}${goto 200}@ ${color 33ff00}${execpi .001 (nvidia-smi --query-gpu=clocks.sm --format=csv,noheader)} ${alignr} ${color 00ff33}${execpi .001 (nvidia-smi --query-gpu=temperature.gpu --format=csv,noheader)}°C${color cccccc}:度温

${color cccccc}驱动: ${color green}${execpi .001 (nvidia-smi --query-gpu=driver_version --format=csv,noheader)}  ${alignr} ${color green}${execpi .001 (nvidia-smi --query-gpu=vbios_version --format=csv,noheader)}${color cccccc}:件固

功率:${color green}${execpi .001 (nvidia-smi --query-gpu=power.draw --format=csv,noheader)} ${alignr} ${color green}${execpi .001 (nvidia-smi --query-gpu=clocks.mem --format=csv,noheader)}${color cccccc}:率频

${color cccccc}GPU:${color green}${execpi .001 (nvidia-smi --query-gpu=utilization.gpu --format=csv,noheader)}${color cccccc}${goto 200}节能: ${color green}${execpi .001 (nvidia-smi --query-gpu=pstate --format=csv,noheader)} ${alignr}${color green}${execpi .001 (nvidia-smi --query-gpu=utilization.memory --format=csv,noheader)} ${color cccccc}:存内

#**********************************************************************

#网络

#**********************************************************************

${color 666666}${stippled_hr 5}

${font WenQuanYi:bold:size=9}${color cccccc}无线网络: ${color 00ff33}${addr wlp5s0}  ${alignr}${execpi 10 /sbin/iwconfig wlp5s0|grep Rate|cut -d"M" -f1|cut -b20-24} Mbits/sec${color cccccc}:宽带前当

${color cccccc}下载: ${color 00ff33}${downspeed wlp5s0}   ${goto 260} ${color cccccc}上传:${color 00ff33}${upspeed wlp5s0}

${color 00ff33}${downspeedgraph wlp5s0 30,120 00ffff 00ffff} ${goto 260} ${color 00ffff}${upspeedgraph wlp5s0 30,120 00ff33 00ff33}

${voffset -10} ${color cccccc}总计: ${color 00ff33}${totaldown wlp5s0} ${goto 260} ${color cccccc}总计: ${color 00ffff}${totalup wlp5s0}

${color 666666}${stippled_hr 5}

执行/usr/bin/conky查看效果

如无法获得网络数据

执行命令ifconfig获得网络信息

把wlp2s0换成自己的

注：显卡只对N卡有效

如无法获得CPU温度安装sensors

sudo apt-get install lm-sensors

设置开机启动

执行sudo dedit ~/.config/autostart/conky.desktop

复制以下内容保存到conky.desktop

[Desktop Entry]

Type=Application

Version=1.0

Name=Conky

Comment= Desktop monitor Manager

Icon= Conky

Exec=/usr/bin/conky

Categories=Application;Graphics;

StartupNotify=true

Hidden=false

NoDisplay=false

修改conky.desktop 文件权限

执行 sudo chmod 777 ~/.config/autostart/conky.desktop

重启电脑sudo reboot

这么详细，谢啦兄弟
