    • [Kernel/Drive] 安装完deepin23系统后没有声音和麦克风
    Product Feedback 1539 views · 3 replies ·
    Tofloor
    poster avatar
    oniugu
    deepin
    2025-03-06 08:18
    Author

    问题： 系统deepin23 在官网下载完镜像，安装后，系统一切正常，但是没有声音，播放没有声音，麦克风也没有声音

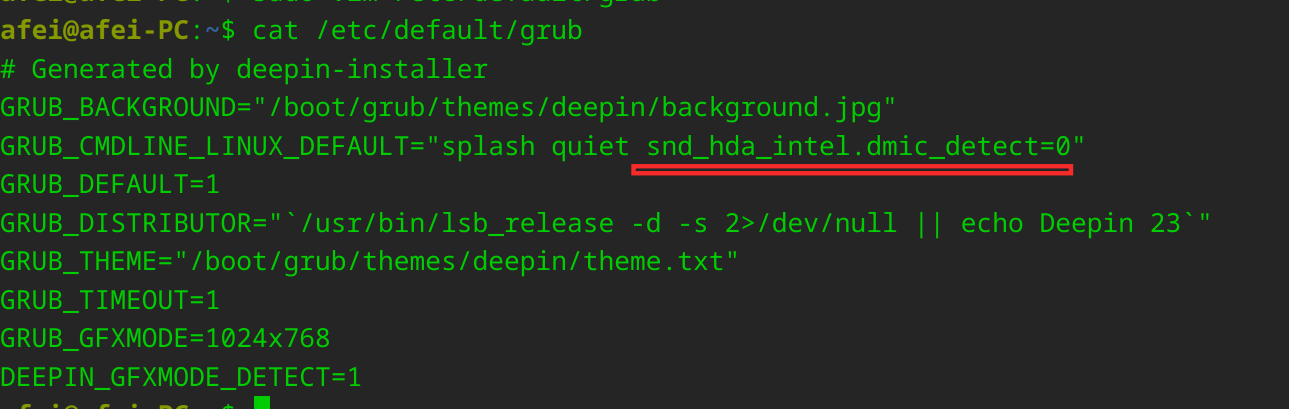

    在论坛中找到 在 grub文件中增加配置 **snd_hda_intel.dmic_detect=0 **于是有声音了，但是还是没有麦克风。 插上有线耳机时，能有麦克风。现在每次用麦克风的时候只能用耳机特别不方便。

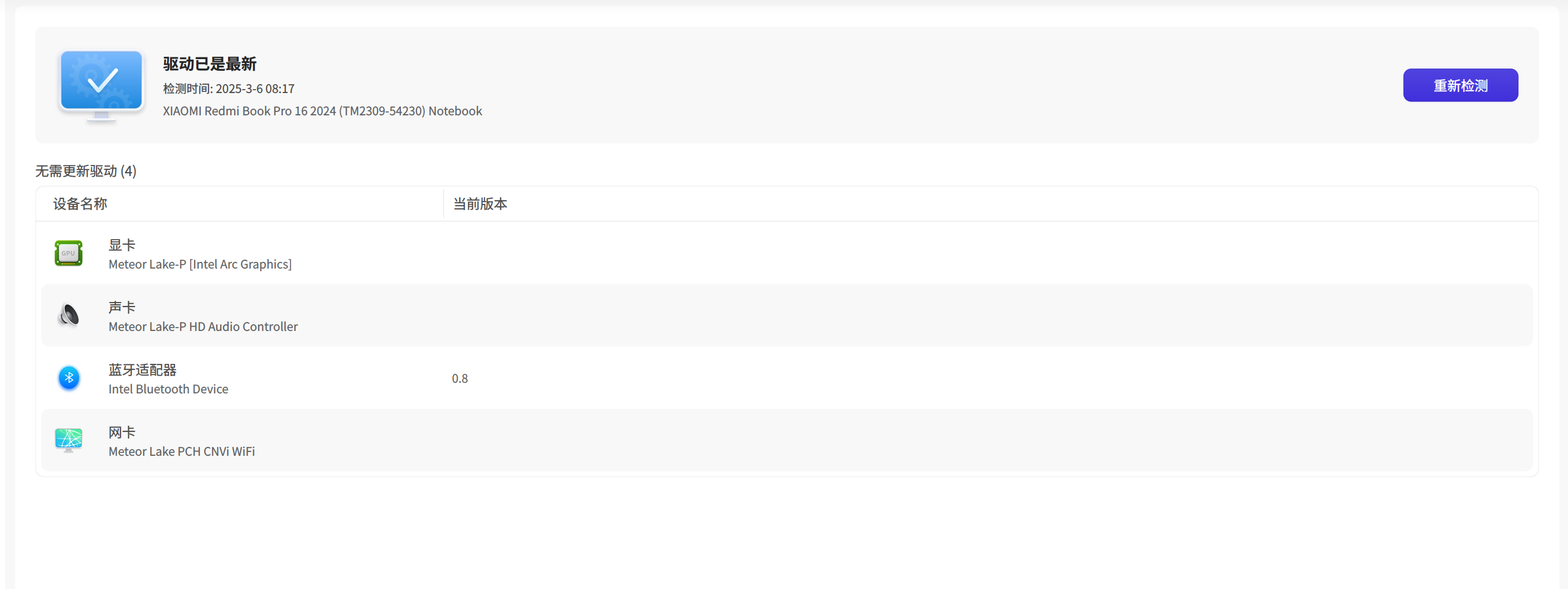

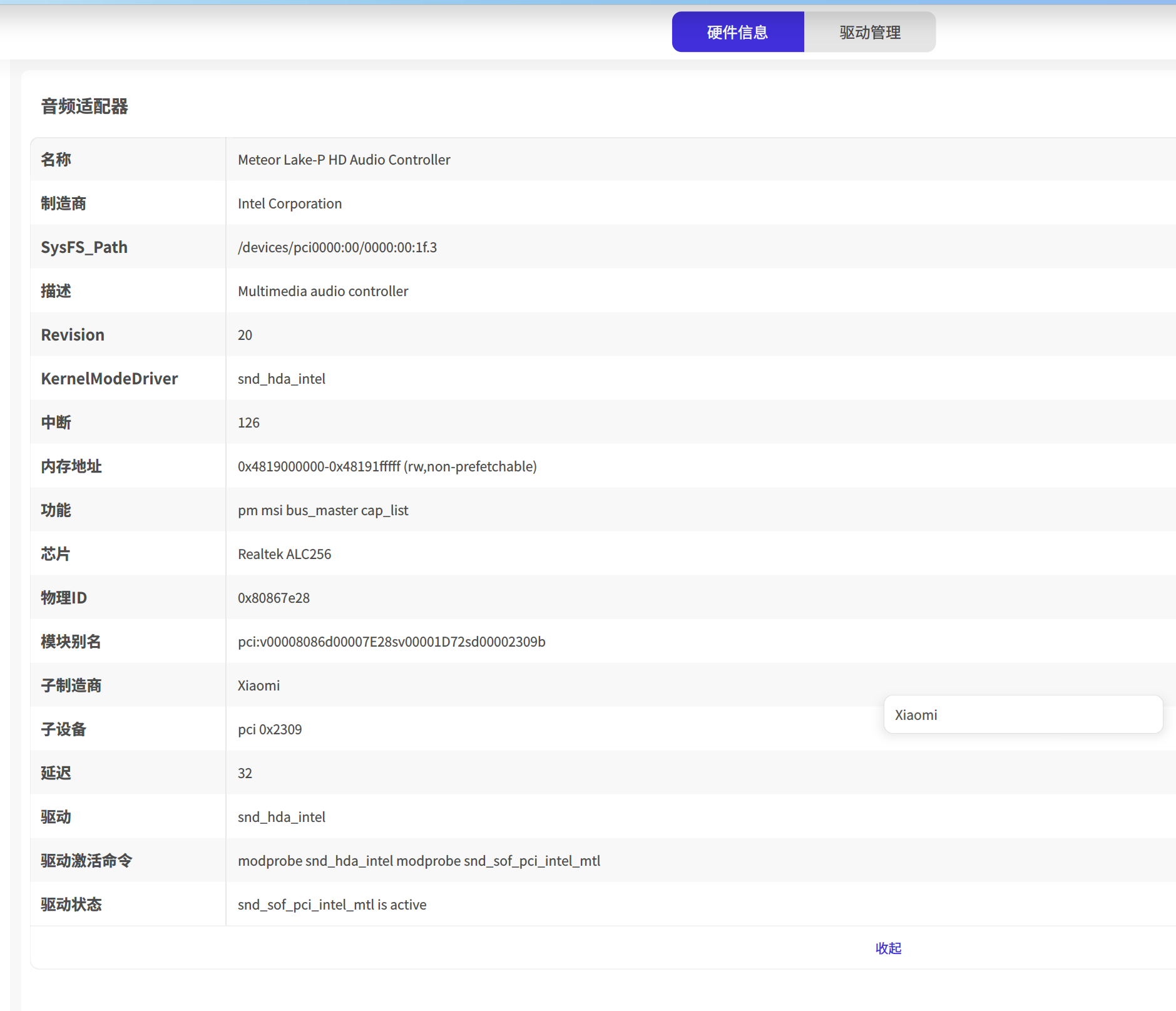

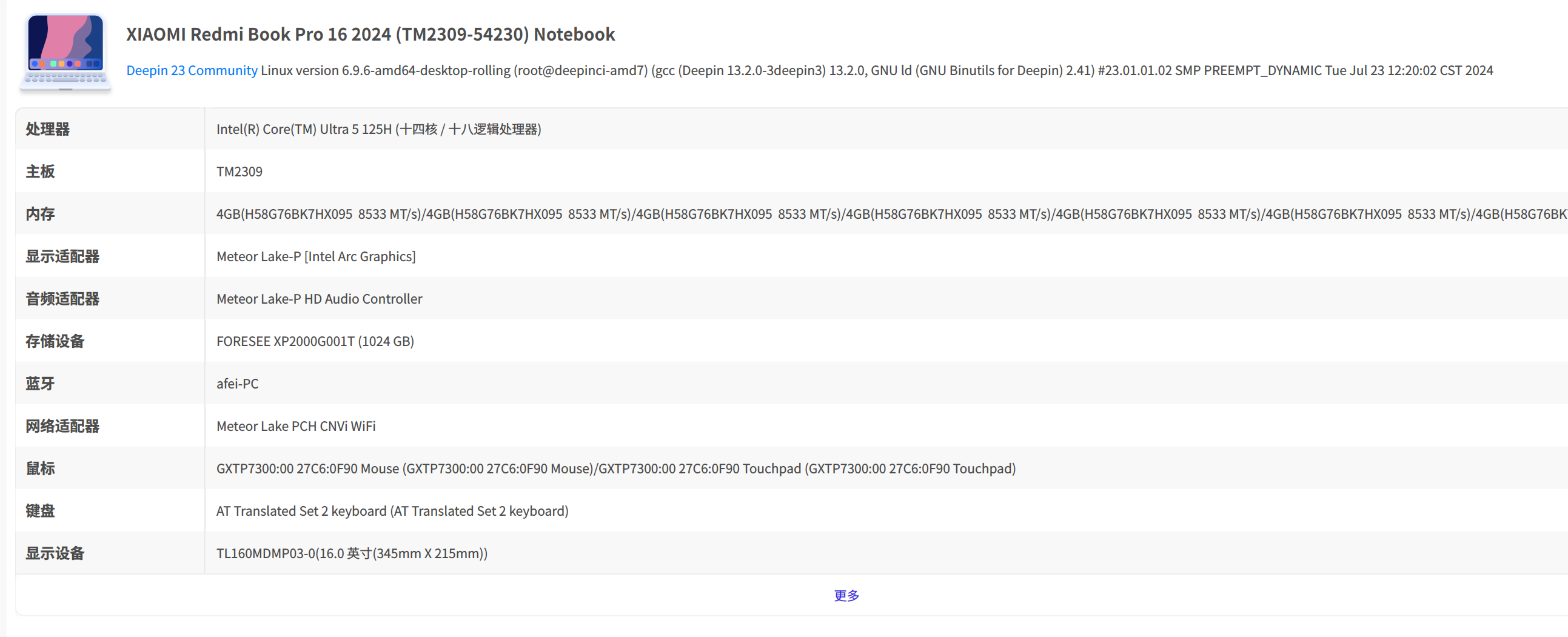

    硬件相关信息


    Reply Favorite View the author
    All Replies
    avatar
    oniugu
    deepin
    2025-03-06 08:23
    #1

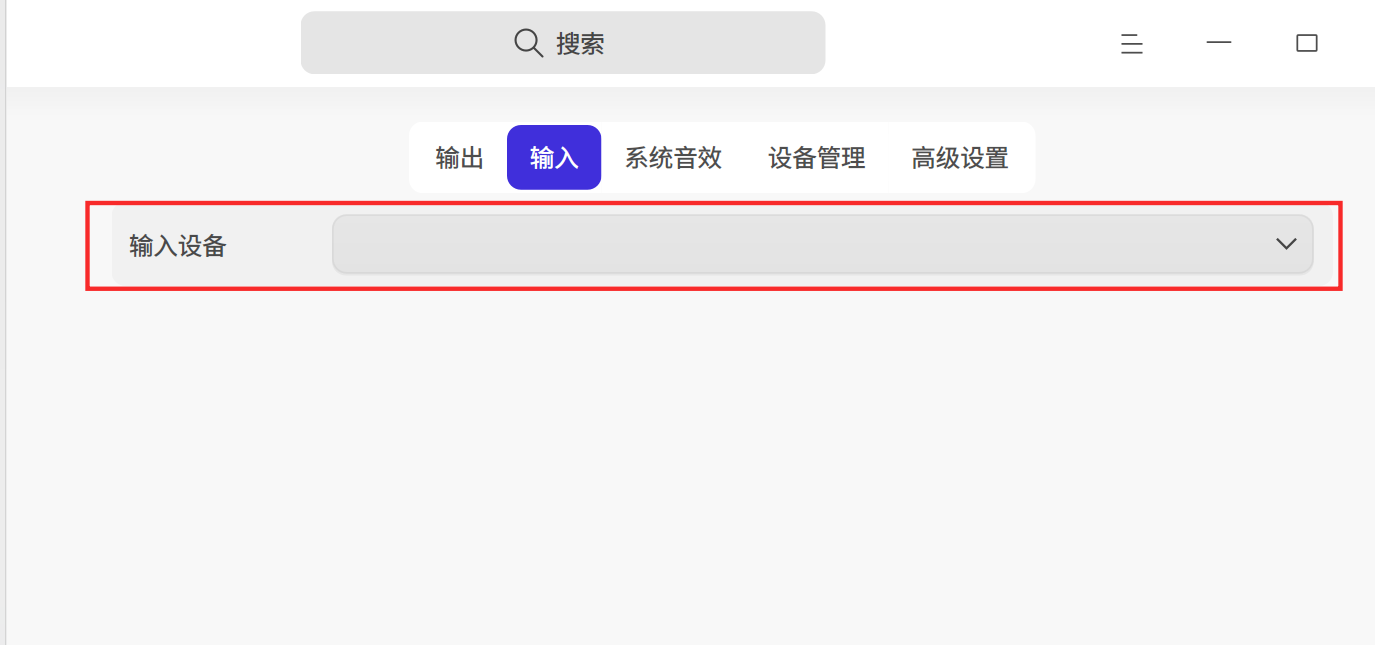

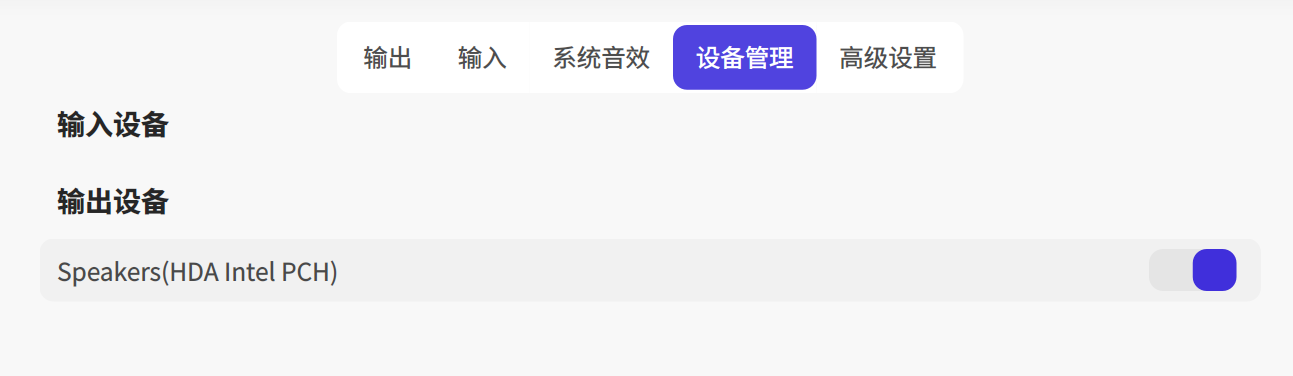

    补充，输出设备里面是空的没有可选项，插上耳机后才有内容

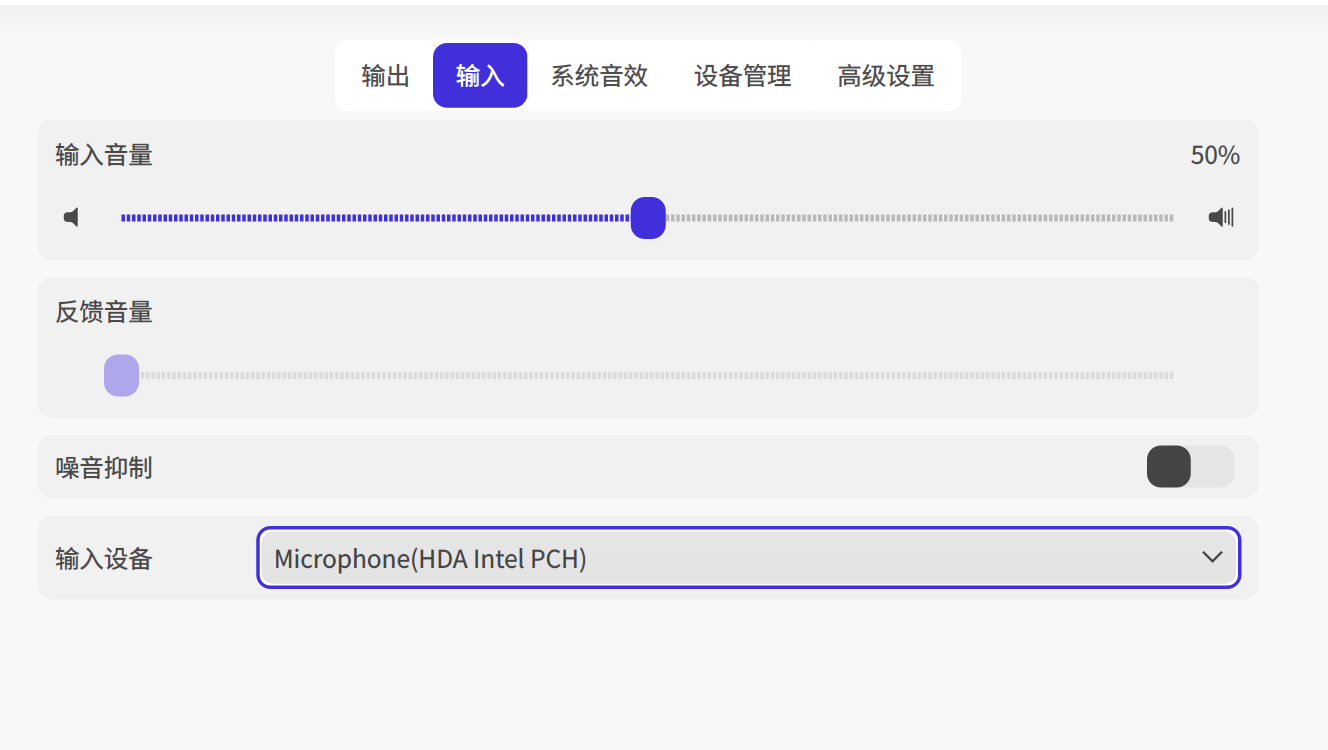

    这是插上耳机的截图


    Reply View the author
    avatar
    欢乐马
    deepin
    2025-03-06 09:34
    #2

    能帮忙把alsainfo的信息提供一下吗？使用alsa-info命令获取对应的信息

    Reply View the author
    avatar
    oniugu
    deepin
    2025-03-06 19:42
    #3
    欢乐马：

    能帮忙把alsainfo的信息提供一下吗？使用alsa-info命令获取对应的信息

    本来想直接传文件的，试了几次传不上来，就直接贴文本啦
    upload=true&script=true&cardinfo=
    !!################################
    !!ALSA Information Script v 0.5.3
    !!################################

    !!Script ran on: Thu Mar  6 11:34:58 UTC 2025


    !!Linux Distribution
    !!------------------




    !!DMI Information
    !!---------------

    Manufacturer:      XIAOMI
    Product Name:      Redmi Book Pro 16 2024
    Product Version:
    Firmware Version:  RMAMT6B0P0A0A
    System SKU:        TM2309-54230
    Board Vendor:      XIAOMI
    Board Name:        TM2309


    !!ACPI Device Status Information
    !!---------------

    /sys/bus/acpi/devices/ACPI0003:00/status 15
    /sys/bus/acpi/devices/ACPI000C:00/status 15
    /sys/bus/acpi/devices/ACPI000E:00/status 15
    /sys/bus/acpi/devices/GXTP7300:00/status 15
    /sys/bus/acpi/devices/GXTP7300:01/status 15
    /sys/bus/acpi/devices/GXTP7300:02/status 15
    /sys/bus/acpi/devices/GXTP7300:03/status 15
    /sys/bus/acpi/devices/GXTP7300:04/status 15
    /sys/bus/acpi/devices/GXTP7300:05/status 15
    /sys/bus/acpi/devices/INT33A1:00/status 15
    /sys/bus/acpi/devices/INT340E:00/status 15
    /sys/bus/acpi/devices/INTC1042:00/status 15
    /sys/bus/acpi/devices/INTC1062:00/status 15
    /sys/bus/acpi/devices/INTC1062:01/status 15
    /sys/bus/acpi/devices/INTC1062:02/status 15
    /sys/bus/acpi/devices/INTC1062:03/status 15
    /sys/bus/acpi/devices/INTC1062:04/status 15
    /sys/bus/acpi/devices/INTC1083:00/status 15
    /sys/bus/acpi/devices/INTC109D:00/status 15
    /sys/bus/acpi/devices/INTC7001:00/status 15
    /sys/bus/acpi/devices/LNXPOWER:00/status 1
    /sys/bus/acpi/devices/LNXPOWER:01/status 1
    /sys/bus/acpi/devices/LNXPOWER:03/status 1
    /sys/bus/acpi/devices/LNXPOWER:04/status 1
    /sys/bus/acpi/devices/LNXPOWER:08/status 1
    /sys/bus/acpi/devices/NTAG5332:00/status 15
    /sys/bus/acpi/devices/PNP0103:00/status 15
    /sys/bus/acpi/devices/PNP030B:00/status 15
    /sys/bus/acpi/devices/PNP0A05:00/status 15
    /sys/bus/acpi/devices/PNP0C02:01/status 8
    /sys/bus/acpi/devices/PNP0C02:02/status 8
    /sys/bus/acpi/devices/PNP0C02:04/status 8
    /sys/bus/acpi/devices/PNP0C02:06/status 3
    /sys/bus/acpi/devices/PNP0C02:07/status 3
    /sys/bus/acpi/devices/PNP0C02:08/status 3
    /sys/bus/acpi/devices/PNP0C09:00/status 15
    /sys/bus/acpi/devices/PNP0C0A:00/status 31
    /sys/bus/acpi/devices/PNP0C0C:00/status 15
    /sys/bus/acpi/devices/PNP0C0D:00/status 15
    /sys/bus/acpi/devices/PRP00001:00/status 15
    /sys/bus/acpi/devices/PRP00001:01/status 11
    /sys/bus/acpi/devices/USBC000:00/status 15
    /sys/bus/acpi/devices/device:12/status 15
    /sys/bus/acpi/devices/device:2c/status 15
    /sys/bus/acpi/devices/device:48/status 15
    /sys/bus/acpi/devices/device:49/status 15
    /sys/bus/acpi/devices/device:4a/status 15
    /sys/bus/acpi/devices/device:4c/status 15
    /sys/bus/acpi/devices/device:4d/status 15
    /sys/bus/acpi/devices/device:4e/status 15
    /sys/bus/acpi/devices/device:67/status 15
    /sys/bus/acpi/devices/device:6e/status 15
    /sys/bus/acpi/devices/device:72/status 15


    !!ACPI SoundWire Device Status Information
    !!---------------



    !!Kernel Information
    !!------------------

    Kernel release:    #23.01.01.02 SMP PREEMPT_DYNAMIC Tue Jul 23 12:20:02 CST 2024
    Operating System:  GNU/Linux
    Architecture:      x86_64
    Processor:         unknown
    SMP Enabled:       Yes


    !!ALSA Version
    !!------------

    Driver version:     k6.9.6-amd64-desktop-rolling
    Library version:
    Utilities version:  1.2.12


    !!Loaded ALSA modules
    !!-------------------

    snd_hda_intel (card 0)


    !!Sound Servers on this system
    !!----------------------------

    PipeWire:
          Installed - Yes (/usr/bin/pipewire)
          Running - Yes

    Pulseaudio:
          Installed - Yes (/usr/bin/pulseaudio)
          Running - No


    !!Soundcards recognised by ALSA
    !!-----------------------------

     0 [PCH            ]: HDA-Intel - HDA Intel PCH
                          HDA Intel PCH at 0x48192c0000 irq 198


    !!PCI Soundcards installed in the system
    !!--------------------------------------

    00:1f.3 Multimedia audio controller [0401]: Intel Corporation Meteor Lake-P HD Audio Controller [8086:7e28] (rev 20)
    Subsystem: Xiaomi Meteor Lake-P HD Audio Controller [1d72:2309]


    !!Modprobe options (Sound related)
    !!--------------------------------

    snd_pcsp: index=-2
    snd_atiixp_modem: index=-2
    snd_intel8x0m: index=-2
    snd_via82xx_modem: index=-2
    snd_intel_dspcfg: dsp_driver=1
    snd_hda_intel: dmic_detect=0


    !!Loaded sound module options
    !!---------------------------

    !!Module: snd_hda_intel
    align_buffer_size : -1
    bdl_pos_adj : -1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1
    beep_mode : N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N
    ctl_dev_id : N
    dmic_detect : N
    enable : Y,Y,Y,Y,Y,Y,Y,Y,Y,Y,Y,Y,Y,Y,Y,Y,Y,Y,Y,Y,Y,Y,Y,Y,Y,Y,Y,Y,Y,Y,Y,Y
    enable_msi : -1
    id : (null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null)
    index : -1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1
    jackpoll_ms : 0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0
    model : (null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null)
    patch : (null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null),(null)
    pm_blacklist : Y
    position_fix : -1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1
    power_save : 1
    power_save_controller : Y
    probe_mask : -1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1,-1
    probe_only : 0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0
    single_cmd : -1
    snoop : -1


    !!Sysfs card info
    !!---------------

    !!Card: /sys/class/sound/card0
    Driver: /sys/bus/pci/drivers/snd_hda_intel
    Tree:


    !!HDA-Intel Codec information
    !!---------------------------
    --startcollapse--

    Codec: Realtek ALC256
    Address: 0
    AFG Function Id: 0x1 (unsol 1)
    Vendor Id: 0x10ec0256
    Subsystem Id: 0x1d722309
    Revision Id: 0x100002
    No Modem Function Group found
    Default PCM:
        rates [0x560]: 44100 48000 96000 192000
        bits [0xe]: 16 20 24
        formats [0x1]: PCM
    Default Amp-In caps: N/A
    Default Amp-Out caps: N/A
    State of AFG node 0x01:
      Power states:  D0 D1 D2 D3 D3cold CLKSTOP EPSS
      Power: setting=D0, actual=D0
    GPIO: io=3, o=0, i=0, unsolicited=1, wake=0
      IO[0]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0
      IO[1]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0
      IO[2]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0
    Node 0x02 [Audio Output] wcaps 0x41d: Stereo Amp-Out
      Control: name="Speaker Playback Volume", index=0, device=0
        ControlAmp: chs=3, dir=Out, idx=0, ofs=0
      Amp-Out caps: ofs=0x57, nsteps=0x57, stepsize=0x02, mute=0
      Amp-Out vals:  [0x43 0x43]
      Converter: stream=0, channel=0
      PCM:
        rates [0x60]: 44100 48000
        bits [0xe]: 16 20 24
        formats [0x1]: PCM
      Power states:  D0 D1 D2 D3 EPSS
      Power: setting=D0, actual=D0
    Node 0x03 [Audio Output] wcaps 0x41d: Stereo Amp-Out
      Control: name="Headphone Playback Volume", index=0, device=0
        ControlAmp: chs=3, dir=Out, idx=0, ofs=0
      Device: name="ALC256 Analog", type="Audio", device=0
      Amp-Out caps: ofs=0x57, nsteps=0x57, stepsize=0x02, mute=0
      Amp-Out vals:  [0x00 0x00]
      Converter: stream=0, channel=0
      PCM:
        rates [0x60]: 44100 48000
        bits [0xe]: 16 20 24
        formats [0x1]: PCM
      Power states:  D0 D1 D2 D3 EPSS
      Power: setting=D0, actual=D0
    Node 0x04 [Vendor Defined Widget] wcaps 0xf00000: Mono
    Node 0x05 [Vendor Defined Widget] wcaps 0xf00000: Mono
    Node 0x06 [Audio Output] wcaps 0x611: Stereo Digital
      Converter: stream=0, channel=0
      Digital:
      Digital category: 0x0
      IEC Coding Type: 0x0
      PCM:
        rates [0x5e0]: 44100 48000 88200 96000 192000
        bits [0xe]: 16 20 24
        formats [0x1]: PCM
      Power states:  D0 D1 D2 D3 EPSS
      Power: setting=D0, actual=D0
    Node 0x07 [Audio Input] wcaps 0x10051b: Stereo Amp-In
      Amp-In caps: ofs=0x17, nsteps=0x3f, stepsize=0x02, mute=1
      Amp-In vals:  [0x97 0x97]
      Converter: stream=0, channel=0
      SDI-Select: 0
      PCM:
        rates [0x560]: 44100 48000 96000 192000
        bits [0xe]: 16 20 24
        formats [0x1]: PCM
      Power states:  D0 D1 D2 D3 EPSS
      Power: setting=D0, actual=D0
      Connection: 1
         0x24
    Node 0x08 [Audio Input] wcaps 0x10051b: Stereo Amp-In
      Control: name="Capture Volume", index=0, device=0
        ControlAmp: chs=3, dir=In, idx=0, ofs=0
      Control: name="Capture Switch", index=0, device=0
        ControlAmp: chs=3, dir=In, idx=0, ofs=0
      Device: name="ALC256 Analog", type="Audio", device=0
      Amp-In caps: ofs=0x17, nsteps=0x3f, stepsize=0x02, mute=1
      Amp-In vals:  [0x3f 0x3f]
      Converter: stream=0, channel=0
      SDI-Select: 0
      PCM:
        rates [0x560]: 44100 48000 96000 192000
        bits [0xe]: 16 20 24
        formats [0x1]: PCM
      Power states:  D0 D1 D2 D3 EPSS
      Power: setting=D0, actual=D0
      Connection: 1
         0x23
    Node 0x09 [Audio Input] wcaps 0x10051b: Stereo Amp-In
      Amp-In caps: ofs=0x17, nsteps=0x3f, stepsize=0x02, mute=1
      Amp-In vals:  [0x97 0x97]
      Converter: stream=0, channel=0
      SDI-Select: 0
      PCM:
        rates [0x560]: 44100 48000 96000 192000
        bits [0xe]: 16 20 24
        formats [0x1]: PCM
      Power states:  D0 D1 D2 D3 EPSS
      Power: setting=D0, actual=D0
      Connection: 1
         0x22
    Node 0x0a [Vendor Defined Widget] wcaps 0xf00000: Mono
    Node 0x0b [Vendor Defined Widget] wcaps 0xf00000: Mono
    Node 0x0c [Vendor Defined Widget] wcaps 0xf00000: Mono
    Node 0x0d [Vendor Defined Widget] wcaps 0xf00000: Mono
    Node 0x0e [Vendor Defined Widget] wcaps 0xf00000: Mono
    Node 0x0f [Vendor Defined Widget] wcaps 0xf00000: Mono
    Node 0x10 [Vendor Defined Widget] wcaps 0xf00000: Mono
    Node 0x11 [Vendor Defined Widget] wcaps 0xf00000: Mono
    Node 0x12 [Pin Complex] wcaps 0x40040b: Stereo Amp-In
      Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0
      Amp-In vals:  [0x00 0x00]
      Pincap 0x00000020: IN
      Pin Default 0x40000000: [N/A] Line Out at Ext N/A
        Conn = Unknown, Color = Unknown
        DefAssociation = 0x0, Sequence = 0x0
      Pin-ctls: 0x00:
      Power states:  D0 D1 D2 D3 EPSS
      Power: setting=D0, actual=D0
    Node 0x13 [Pin Complex] wcaps 0x40040b: Stereo Amp-In
      Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0
      Amp-In vals:  [0x00 0x00]
      Pincap 0x00000020: IN
      Pin Default 0x411111f0: [N/A] Speaker at Ext Rear
        Conn = 1/8, Color = Black
        DefAssociation = 0xf, Sequence = 0x0
        Misc = NO_PRESENCE
      Pin-ctls: 0x00:
      Power states:  D0 D1 D2 D3 EPSS
      Power: setting=D0, actual=D0
    Node 0x14 [Pin Complex] wcaps 0x40058d: Stereo Amp-Out
      Control: name="Speaker Playback Switch", index=0, device=0
        ControlAmp: chs=3, dir=Out, idx=0, ofs=0
      Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
      Amp-Out vals:  [0x00 0x00]
      Pincap 0x00010014: OUT EAPD Detect
      EAPD 0x2: EAPD
      Pin Default 0x90170110: [Fixed] Speaker at Int N/A
        Conn = Analog, Color = Unknown
        DefAssociation = 0x1, Sequence = 0x0
        Misc = NO_PRESENCE
      Pin-ctls: 0x40: OUT
      Unsolicited: tag=00, enabled=0
      Power states:  D0 D1 D2 D3 EPSS
      Power: setting=D0, actual=D0
      Connection: 1
         0x02
    Node 0x15 [Vendor Defined Widget] wcaps 0xf00000: Mono
    Node 0x16 [Vendor Defined Widget] wcaps 0xf00000: Mono
    Node 0x17 [Vendor Defined Widget] wcaps 0xf00000: Mono
    Node 0x18 [Pin Complex] wcaps 0x40048b: Stereo Amp-In
      Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0
      Amp-In vals:  [0x00 0x00]
      Pincap 0x00003724: IN Detect
        Vref caps: HIZ 50 GRD 80 100
      Pin Default 0x411111f0: [N/A] Speaker at Ext Rear
        Conn = 1/8, Color = Black
        DefAssociation = 0xf, Sequence = 0x0
        Misc = NO_PRESENCE
      Pin-ctls: 0x20: IN VREF_HIZ
      Unsolicited: tag=00, enabled=0
      Power states:  D0 D1 D2 D3 EPSS
      Power: setting=D0, actual=D0
    Node 0x19 [Pin Complex] wcaps 0x40048b: Stereo Amp-In
      Control: name="Mic Boost Volume", index=0, device=0
        ControlAmp: chs=3, dir=In, idx=0, ofs=0
      Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0
      Amp-In vals:  [0x00 0x00]
      Pincap 0x00003724: IN Detect
        Vref caps: HIZ 50 GRD 80 100
      Pin Default 0x04a11040: [Jack] Mic at Ext Right
        Conn = 1/8, Color = Black
        DefAssociation = 0x4, Sequence = 0x0
      Pin-ctls: 0x24: IN VREF_80
      Unsolicited: tag=02, enabled=1
      Power states:  D0 D1 D2 D3 EPSS
      Power: setting=D0, actual=D0
    Node 0x1a [Pin Complex] wcaps 0x40048b: Stereo Amp-In
      Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0
      Amp-In vals:  [0x00 0x00]
      Pincap 0x00003724: IN Detect
        Vref caps: HIZ 50 GRD 80 100
      Pin Default 0x411111f0: [N/A] Speaker at Ext Rear
        Conn = 1/8, Color = Black
        DefAssociation = 0xf, Sequence = 0x0
        Misc = NO_PRESENCE
      Pin-ctls: 0x00: VREF_HIZ
      Unsolicited: tag=00, enabled=0
      Power states:  D0 D1 D2 D3 EPSS
      Power: setting=D0, actual=D0
    Node 0x1b [Pin Complex] wcaps 0x40058f: Stereo Amp-In Amp-Out
      Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0
      Amp-In vals:  [0x00 0x00]
      Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
      Amp-Out vals:  [0x80 0x80]
      Pincap 0x00013734: IN OUT EAPD Detect
        Vref caps: HIZ 50 GRD 80 100
      EAPD 0x2: EAPD
      Pin Default 0x411111f0: [N/A] Speaker at Ext Rear
        Conn = 1/8, Color = Black
        DefAssociation = 0xf, Sequence = 0x0
        Misc = NO_PRESENCE
      Pin-ctls: 0x20: IN VREF_HIZ
      Unsolicited: tag=00, enabled=0
      Power states:  D0 D1 D2 D3 EPSS
      Power: setting=D0, actual=D0
      Connection: 2
         0x02* 0x03
    Node 0x1c [Vendor Defined Widget] wcaps 0xf00000: Mono
    Node 0x1d [Pin Complex] wcaps 0x400400: Mono
      Pincap 0x00000020: IN
      Pin Default 0x40679a2d: [N/A] Modem Line at Ext N/A
        Conn = Analog, Color = Pink
        DefAssociation = 0x2, Sequence = 0xd
      Pin-ctls: 0x20: IN
      Power states:  D0 D1 D2 D3 EPSS
      Power: setting=D0, actual=D0
    Node 0x1e [Pin Complex] wcaps 0x400781: Stereo Digital
      Pincap 0x00000014: OUT Detect
      Pin Default 0x411111f0: [N/A] Speaker at Ext Rear
        Conn = 1/8, Color = Black
        DefAssociation = 0xf, Sequence = 0x0
        Misc = NO_PRESENCE
      Pin-ctls: 0x40: OUT
      Unsolicited: tag=00, enabled=0
      Power states:  D0 D1 D2 D3 EPSS
      Power: setting=D0, actual=D0
      Connection: 1
         0x06
    Node 0x1f [Vendor Defined Widget] wcaps 0xf00000: Mono
    Node 0x20 [Vendor Defined Widget] wcaps 0xf00040: Mono
      Processing caps: benign=0, ncoeff=91
    Node 0x21 [Pin Complex] wcaps 0x40058d: Stereo Amp-Out
      Control: name="Headphone Playback Switch", index=0, device=0
        ControlAmp: chs=3, dir=Out, idx=0, ofs=0
      Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
      Amp-Out vals:  [0x80 0x80]
      Pincap 0x0001001c: OUT HP EAPD Detect
      EAPD 0x2: EAPD
      Pin Default 0x04211020: [Jack] HP Out at Ext Right
        Conn = 1/8, Color = Black
        DefAssociation = 0x2, Sequence = 0x0
      Pin-ctls: 0xc0: OUT HP
      Unsolicited: tag=01, enabled=1
      Power states:  D0 D1 D2 D3 EPSS
      Power: setting=D0, actual=D0
      Connection: 2
         0x02 0x03*
    Node 0x22 [Audio Mixer] wcaps 0x20010b: Stereo Amp-In
      Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
      Amp-In vals:  [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80]
      Connection: 5
         0x18 0x19 0x1a 0x1b 0x1d
    Node 0x23 [Audio Mixer] wcaps 0x20010b: Stereo Amp-In
      Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
      Amp-In vals:  [0x80 0x80] [0x00 0x00] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80]
      Connection: 6
         0x18 0x19 0x1a 0x1b 0x1d 0x12
    Node 0x24 [Audio Selector] wcaps 0x300101: Stereo
      Connection: 2
         0x12* 0x13
    Codec: Intel Meteor Lake HDMI
    Address: 2
    AFG Function Id: 0x1 (unsol 0)
    Vendor Id: 0x8086281d
    Subsystem Id: 0x80860101
    Revision Id: 0x100000
    No Modem Function Group found
    Default PCM:
        rates [0x0]:
        bits [0x0]:
        formats [0x0]:
    Default Amp-In caps: N/A
    Default Amp-Out caps: N/A
    State of AFG node 0x01:
      Power states:  D0 D3 CLKSTOP EPSS
      Power: setting=D0, actual=D0, Clock-stop-OK
    GPIO: io=0, o=0, i=0, unsolicited=0, wake=0
    Node 0x03 [Audio Output] wcaps 0x6611: 8-Channels Digital
      Converter: stream=0, channel=0
      Digital: Enabled
      Digital category: 0x0
      IEC Coding Type: 0x0
      PCM:
        rates [0x7f0]: 32000 44100 48000 88200 96000 176400 192000
        bits [0x1a]: 16 24 32
        formats [0x5]: PCM AC3
      Power states:  D0 D3 EPSS
      Power: setting=D0, actual=D0
    Node 0x04 [Pin Complex] wcaps 0x40778d: 8-Channels Digital Amp-Out CP
      Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
      Amp-Out vals:  [0x00 0x00]
      Pincap 0x09000094: OUT Detect HBR HDMI DP
      Pin Default 0x18560010: [Jack] Digital Out at Int HDMI
        Conn = Digital, Color = Unknown
        DefAssociation = 0x1, Sequence = 0x0
      Pin-ctls: 0x00:
      Unsolicited: tag=00, enabled=0
      Power states:  D0 D3 EPSS
      Power: setting=D0, actual=D0
      Devices: 0
      Connection: 0
    Node 0x05 [Audio Output] wcaps 0x6611: 8-Channels Digital
      Converter: stream=0, channel=0
      Digital: Enabled
      Digital category: 0x0
      IEC Coding Type: 0x0
      PCM:
        rates [0x7f0]: 32000 44100 48000 88200 96000 176400 192000
        bits [0x1a]: 16 24 32
        formats [0x5]: PCM AC3
      Power states:  D0 D3 EPSS
      Power: setting=D0, actual=D0
    Node 0x06 [Pin Complex] wcaps 0x40778d: 8-Channels Digital Amp-Out CP
      Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
      Amp-Out vals:  [0x00 0x00]
      Pincap 0x09000094: OUT Detect HBR HDMI DP
      Pin Default 0x18560010: [Jack] Digital Out at Int HDMI
        Conn = Digital, Color = Unknown
        DefAssociation = 0x1, Sequence = 0x0
      Pin-ctls: 0x00:
      Unsolicited: tag=00, enabled=0
      Power states:  D0 D3 EPSS
      Power: setting=D0, actual=D0
      Devices: 0
      Connection: 0
    Node 0x07 [Audio Output] wcaps 0x6611: 8-Channels Digital
      Converter: stream=0, channel=0
      Digital: Enabled
      Digital category: 0x0
      IEC Coding Type: 0x0
      PCM:
        rates [0x7f0]: 32000 44100 48000 88200 96000 176400 192000
        bits [0x1a]: 16 24 32
        formats [0x5]: PCM AC3
      Power states:  D0 D3 EPSS
      Power: setting=D0, actual=D0
    Node 0x08 [Pin Complex] wcaps 0x40778d: 8-Channels Digital Amp-Out CP
      Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
      Amp-Out vals:  [0x00 0x00]
      Pincap 0x09000094: OUT Detect HBR HDMI DP
      Pin Default 0x18560010: [Jack] Digital Out at Int HDMI
        Conn = Digital, Color = Unknown
        DefAssociation = 0x1, Sequence = 0x0
      Pin-ctls: 0x00:
      Unsolicited: tag=00, enabled=0
      Power states:  D0 D3 EPSS
      Power: setting=D0, actual=D0
      Devices: 0
      Connection: 0
    Node 0x09 [Audio Output] wcaps 0x6611: 8-Channels Digital
      Converter: stream=0, channel=0
      Digital: Enabled
      Digital category: 0x0
      IEC Coding Type: 0x0
      PCM:
        rates [0x7f0]: 32000 44100 48000 88200 96000 176400 192000
        bits [0x1a]: 16 24 32
        formats [0x5]: PCM AC3
      Power states:  D0 D3 EPSS
      Power: setting=D0, actual=D0
    Node 0x0a [Pin Complex] wcaps 0x40778d: 8-Channels Digital Amp-Out CP
      Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
      Amp-Out vals:  [0x00 0x00]
      Pincap 0x09000094: OUT Detect HBR HDMI DP
      Pin Default 0x18560010: [Jack] Digital Out at Int HDMI
        Conn = Digital, Color = Unknown
        DefAssociation = 0x1, Sequence = 0x0
      Pin-ctls: 0x00:
      Unsolicited: tag=00, enabled=0
      Power states:  D0 D3 EPSS
      Power: setting=D0, actual=D0
      Devices: 0
      Connection: 0
    Node 0x0b [Pin Complex] wcaps 0x40778d: 8-Channels Digital Amp-Out CP
      Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
      Amp-Out vals:  [0x00 0x00]
      Pincap 0x09000094: OUT Detect HBR HDMI DP
      Pin Default 0x18560010: [Jack] Digital Out at Int HDMI
        Conn = Digital, Color = Unknown
        DefAssociation = 0x1, Sequence = 0x0
      Pin-ctls: 0x00:
      Unsolicited: tag=00, enabled=0
      Power states:  D0 D3 EPSS
      Power: setting=D0, actual=D0
      Devices: 0
      Connection: 0
    Node 0x0c [Pin Complex] wcaps 0x40778d: 8-Channels Digital Amp-Out CP
      Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
      Amp-Out vals:  [0x00 0x00]
      Pincap 0x09000094: OUT Detect HBR HDMI DP
      Pin Default 0x18560010: [Jack] Digital Out at Int HDMI
        Conn = Digital, Color = Unknown
        DefAssociation = 0x1, Sequence = 0x0
      Pin-ctls: 0x00:
      Unsolicited: tag=00, enabled=0
      Power states:  D0 D3 EPSS
      Power: setting=D0, actual=D0
      Devices: 0
      Connection: 0
    Node 0x0d [Pin Complex] wcaps 0x40778d: 8-Channels Digital Amp-Out CP
      Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
      Amp-Out vals:  [0x00 0x00]
      Pincap 0x09000094: OUT Detect HBR HDMI DP
      Pin Default 0x18560010: [Jack] Digital Out at Int HDMI
        Conn = Digital, Color = Unknown
        DefAssociation = 0x1, Sequence = 0x0
      Pin-ctls: 0x00:
      Unsolicited: tag=00, enabled=0
      Power states:  D0 D3 EPSS
      Power: setting=D0, actual=D0
      Devices: 0
      Connection: 0
    Node 0x0e [Pin Complex] wcaps 0x40778d: 8-Channels Digital Amp-Out CP
      Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
      Amp-Out vals:  [0x00 0x00]
      Pincap 0x09000094: OUT Detect HBR HDMI DP
      Pin Default 0x18560010: [Jack] Digital Out at Int HDMI
        Conn = Digital, Color = Unknown
        DefAssociation = 0x1, Sequence = 0x0
      Pin-ctls: 0x00:
      Unsolicited: tag=00, enabled=0
      Power states:  D0 D3 EPSS
      Power: setting=D0, actual=D0
      Devices: 0
      Connection: 0
    Node 0x0f [Pin Complex] wcaps 0x40778d: 8-Channels Digital Amp-Out CP
      Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
      Amp-Out vals:  [0x00 0x00]
      Pincap 0x09000094: OUT Detect HBR HDMI DP
      Pin Default 0x18560010: [Jack] Digital Out at Int HDMI
        Conn = Digital, Color = Unknown
        DefAssociation = 0x1, Sequence = 0x0
      Pin-ctls: 0x00:
      Unsolicited: tag=00, enabled=0
      Power states:  D0 D3 EPSS
      Power: setting=D0, actual=D0
      Devices: 0
      Connection: 0
    --endcollapse--


    !!ALSA Device nodes
    !!-----------------

    crw-rw----+ 1 root audio 116, 10 Mar  6 19:33 /dev/snd/controlC0
    crw-rw----+ 1 root audio 116,  8 Mar  6 19:33 /dev/snd/hwC0D0
    crw-rw----+ 1 root audio 116,  9 Mar  6 19:33 /dev/snd/hwC0D2
    crw-rw----+ 1 root audio 116,  3 Mar  6 19:34 /dev/snd/pcmC0D0c
    crw-rw----+ 1 root audio 116,  2 Mar  6 19:34 /dev/snd/pcmC0D0p
    crw-rw----+ 1 root audio 116,  4 Mar  6 19:34 /dev/snd/pcmC0D3p
    crw-rw----+ 1 root audio 116,  5 Mar  6 19:34 /dev/snd/pcmC0D7p
    crw-rw----+ 1 root audio 116,  6 Mar  6 19:34 /dev/snd/pcmC0D8p
    crw-rw----+ 1 root audio 116,  7 Mar  6 19:34 /dev/snd/pcmC0D9p
    crw-rw----+ 1 root audio 116,  1 Mar  6 19:33 /dev/snd/seq
    crw-rw----+ 1 root audio 116, 33 Mar  6 19:33 /dev/snd/timer

    /dev/snd/by-path:
    total 0
    drwxr-xr-x 2 root root  60 Mar  6 19:33 .
    drwxr-xr-x 3 root root 280 Mar  6 19:33 ..
    lrwxrwxrwx 1 root root  12 Mar  6 19:33 pci-0000:00:1f.3 -> ../controlC0


    !!Aplay/Arecord output
    !!--------------------

    APLAY

    **** List of PLAYBACK Hardware Devices ****
    card 0: PCH [HDA Intel PCH], device 0: ALC256 Analog [ALC256 Analog]
      Subdevices: 1/1
      Subdevice #0: subdevice #0
    card 0: PCH [HDA Intel PCH], device 3: HDMI 0 [HDMI 0]
      Subdevices: 1/1
      Subdevice #0: subdevice #0
    card 0: PCH [HDA Intel PCH], device 7: HDMI 1 [HDMI 1]
      Subdevices: 1/1
      Subdevice #0: subdevice #0
    card 0: PCH [HDA Intel PCH], device 8: HDMI 2 [HDMI 2]
      Subdevices: 1/1
      Subdevice #0: subdevice #0
    card 0: PCH [HDA Intel PCH], device 9: HDMI 3 [HDMI 3]
      Subdevices: 1/1
      Subdevice #0: subdevice #0

    ARECORD

    **** List of CAPTURE Hardware Devices ****
    card 0: PCH [HDA Intel PCH], device 0: ALC256 Analog [ALC256 Analog]
      Subdevices: 1/1
      Subdevice #0: subdevice #0

    !!Amixer output
    !!-------------

    !!-------Mixer controls for card PCH

    Card sysdefault:0 'PCH'/'HDA Intel PCH at 0x48192c0000 irq 198'
      Mixer name : 'Realtek ALC256'
      Components : 'HDA:10ec0256,1d722309,00100002 HDA:8086281d,80860101,00100000'
      Controls      : 44
      Simple ctrls  : 11
    Simple mixer control 'Master',0
      Capabilities: pvolume pvolume-joined pswitch pswitch-joined
      Playback channels: Mono
      Limits: Playback 0 - 87
      Mono: Playback 67 [77%] [-15.00dB] [on]
    Simple mixer control 'Headphone',0
      Capabilities: pvolume pswitch
      Playback channels: Front Left - Front Right
      Limits: Playback 0 - 87
      Mono:
      Front Left: Playback 0 [0%] [-65.25dB] [off]
      Front Right: Playback 0 [0%] [-65.25dB] [off]
    Simple mixer control 'Speaker',0
      Capabilities: pvolume pswitch
      Playback channels: Front Left - Front Right
      Limits: Playback 0 - 87
      Mono:
      Front Left: Playback 87 [100%] [0.00dB] [on]
      Front Right: Playback 87 [100%] [0.00dB] [on]
    Simple mixer control 'PCM',0
      Capabilities: pvolume
      Playback channels: Front Left - Front Right
      Limits: Playback 0 - 255
      Mono:
      Front Left: Playback 253 [99%] [-0.40dB]
      Front Right: Playback 253 [99%] [-0.40dB]
    Simple mixer control 'Mic Boost',0
      Capabilities: volume
      Playback channels: Front Left - Front Right
      Capture channels: Front Left - Front Right
      Limits: 0 - 3
      Front Left: 0 [0%] [0.00dB]
      Front Right: 0 [0%] [0.00dB]
    Simple mixer control 'IEC958',0
      Capabilities: pswitch pswitch-joined
      Playback channels: Mono
      Mono: Playback [off]
    Simple mixer control 'IEC958',1
      Capabilities: pswitch pswitch-joined
      Playback channels: Mono
      Mono: Playback [on]
    Simple mixer control 'IEC958',2
      Capabilities: pswitch pswitch-joined
      Playback channels: Mono
      Mono: Playback [on]
    Simple mixer control 'IEC958',3
      Capabilities: pswitch pswitch-joined
      Playback channels: Mono
      Mono: Playback [on]
    Simple mixer control 'Capture',0
      Capabilities: cvolume cswitch
      Capture channels: Front Left - Front Right
      Limits: Capture 0 - 63
      Front Left: Capture 63 [100%] [30.00dB] [on]
      Front Right: Capture 63 [100%] [30.00dB] [on]
    Simple mixer control 'Auto-Mute Mode',0
      Capabilities: enum
      Items: 'Disabled' 'Enabled'
      Item0: 'Disabled'


    !!Alsactl output
    !!--------------

    --startcollapse--
    state.PCH {
    control.1 {
    iface MIXER
    name 'Headphone Playback Volume'
    value.0 0
    value.1 0
    comment {
    access 'read write'
    type INTEGER
    count 2
    range '0 - 87'
    dbmin -6525
    dbmax 0
    dbvalue.0 -6525
    dbvalue.1 -6525
    }
    }
    control.2 {
    iface MIXER
    name 'Headphone Playback Switch'
    value.0 false
    value.1 false
    comment {
    access 'read write'
    type BOOLEAN
    count 2
    }
    }
    control.3 {
    iface MIXER
    name 'Speaker Playback Volume'
    value.0 87
    value.1 87
    comment {
    access 'read write'
    type INTEGER
    count 2
    range '0 - 87'
    dbmin -6525
    dbmax 0
    dbvalue.0 0
    dbvalue.1 0
    }
    }
    control.4 {
    iface MIXER
    name 'Speaker Playback Switch'
    value.0 true
    value.1 true
    comment {
    access 'read write'
    type BOOLEAN
    count 2
    }
    }
    control.5 {
    iface MIXER
    name 'Auto-Mute Mode'
    value Disabled
    comment {
    access 'read write'
    type ENUMERATED
    count 1
    item.0 Disabled
    item.1 Enabled
    }
    }
    control.6 {
    iface MIXER
    name 'Capture Volume'
    value.0 63
    value.1 63
    comment {
    access 'read write'
    type INTEGER
    count 2
    range '0 - 63'
    dbmin -1725
    dbmax 3000
    dbvalue.0 3000
    dbvalue.1 3000
    }
    }
    control.7 {
    iface MIXER
    name 'Capture Switch'
    value.0 true
    value.1 true
    comment {
    access 'read write'
    type BOOLEAN
    count 2
    }
    }
    control.8 {
    iface MIXER
    name 'Mic Boost Volume'
    value.0 0
    value.1 0
    comment {
    access 'read write'
    type INTEGER
    count 2
    range '0 - 3'
    dbmin 0
    dbmax 3000
    dbvalue.0 0
    dbvalue.1 0
    }
    }
    control.9 {
    iface MIXER
    name 'Master Playback Volume'
    value 67
    comment {
    access 'read write'
    type INTEGER
    count 1
    range '0 - 87'
    dbmin -6525
    dbmax 0
    dbvalue.0 -1500
    }
    }
    control.10 {
    iface MIXER
    name 'Master Playback Switch'
    value true
    comment {
    access 'read write'
    type BOOLEAN
    count 1
    }
    }
    control.11 {
    iface CARD
    name 'Mic Jack'
    value false
    comment {
    access read
    type BOOLEAN
    count 1
    }
    }
    control.12 {
    iface CARD
    name 'Headphone Jack'
    value false
    comment {
    access read
    type BOOLEAN
    count 1
    }
    }
    control.13 {
    iface CARD
    name 'Speaker Phantom Jack'
    value true
    comment {
    access read
    type BOOLEAN
    count 1
    }
    }
    control.14 {
    iface PCM
    name 'Playback Channel Map'
    value.0 0
    value.1 0
    comment {
    access read
    type INTEGER
    count 2
    range '0 - 36'
    }
    }
    control.15 {
    iface PCM
    name 'Capture Channel Map'
    value.0 0
    value.1 0
    comment {
    access read
    type INTEGER
    count 2
    range '0 - 36'
    }
    }
    control.16 {
    iface CARD
    name 'HDMI/DP,pcm=3 Jack'
    value false
    comment {
    access read
    type BOOLEAN
    count 1
    }
    }
    control.17 {
    iface MIXER
    name 'IEC958 Playback Con Mask'
    value '0fff000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000'
    comment {
    access read
    type IEC958
    count 1
    }
    }
    control.18 {
    iface MIXER
    name 'IEC958 Playback Pro Mask'
    value '0f00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000'
    comment {
    access read
    type IEC958
    count 1
    }
    }
    control.19 {
    iface MIXER
    name 'IEC958 Playback Default'
    value '0400000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000'
    comment {
    access 'read write'
    type IEC958
    count 1
    }
    }
    control.20 {
    iface MIXER
    name 'IEC958 Playback Switch'
    value false
    comment {
    access 'read write'
    type BOOLEAN
    count 1
    }
    }
    control.21 {
    iface PCM
    device 3
    name ELD
    value ''
    comment {
    access 'read volatile'
    type BYTES
    count 0
    }
    }
    control.22 {
    iface CARD
    name 'HDMI/DP,pcm=7 Jack'
    value false
    comment {
    access read
    type BOOLEAN
    count 1
    }
    }
    control.23 {
    iface MIXER
    name 'IEC958 Playback Con Mask'
    index 1
    value '0fff000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000'
    comment {
    access read
    type IEC958
    count 1
    }
    }
    control.24 {
    iface MIXER
    name 'IEC958 Playback Pro Mask'
    index 1
    value '0f00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000'
    comment {
    access read
    type IEC958
    count 1
    }
    }
    control.25 {
    iface MIXER
    name 'IEC958 Playback Default'
    index 1
    value '0400000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000'
    comment {
    access 'read write'
    type IEC958
    count 1
    }
    }
    control.26 {
    iface MIXER
    name 'IEC958 Playback Switch'
    index 1
    value true
    comment {
    access 'read write'
    type BOOLEAN
    count 1
    }
    }
    control.27 {
    iface PCM
    device 7
    name ELD
    value ''
    comment {
    access 'read volatile'
    type BYTES
    count 0
    }
    }
    control.28 {
    iface CARD
    name 'HDMI/DP,pcm=8 Jack'
    value false
    comment {
    access read
    type BOOLEAN
    count 1
    }
    }
    control.29 {
    iface MIXER
    name 'IEC958 Playback Con Mask'
    index 2
    value '0fff000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000'
    comment {
    access read
    type IEC958
    count 1
    }
    }
    control.30 {
    iface MIXER
    name 'IEC958 Playback Pro Mask'
    index 2
    value '0f00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000'
    comment {
    access read
    type IEC958
    count 1
    }
    }
    control.31 {
    iface MIXER
    name 'IEC958 Playback Default'
    index 2
    value '0400000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000'
    comment {
    access 'read write'
    type IEC958
    count 1
    }
    }
    control.32 {
    iface MIXER
    name 'IEC958 Playback Switch'
    index 2
    value true
    comment {
    access 'read write'
    type BOOLEAN
    count 1
    }
    }
    control.33 {
    iface PCM
    device 8
    name ELD
    value ''
    comment {
    access 'read volatile'
    type BYTES
    count 0
    }
    }
    control.34 {
    iface CARD
    name 'HDMI/DP,pcm=9 Jack'
    value false
    comment {
    access read
    type BOOLEAN
    count 1
    }
    }
    control.35 {
    iface MIXER
    name 'IEC958 Playback Con Mask'
    index 3
    value '0fff000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000'
    comment {
    access read
    type IEC958
    count 1
    }
    }
    control.36 {
    iface MIXER
    name 'IEC958 Playback Pro Mask'
    index 3
    value '0f00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000'
    comment {
    access read
    type IEC958
    count 1
    }
    }
    control.37 {
    iface MIXER
    name 'IEC958 Playback Default'
    index 3
    value '0400000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000'
    comment {
    access 'read write'
    type IEC958
    count 1
    }
    }
    control.38 {
    iface MIXER
    name 'IEC958 Playback Switch'
    index 3
    value true
    comment {
    access 'read write'
    type BOOLEAN
    count 1
    }
    }
    control.39 {
    iface PCM
    device 9
    name ELD
    value ''
    comment {
    access 'read volatile'
    type BYTES
    count 0
    }
    }
    control.40 {
    iface PCM
    device 3
    name 'Playback Channel Map'
    value.0 0
    value.1 0
    value.2 0
    value.3 0
    value.4 0
    value.5 0
    value.6 0
    value.7 0
    comment {
    access 'read write'
    type INTEGER
    count 8
    range '0 - 36'
    }
    }
    control.41 {
    iface PCM
    device 7
    name 'Playback Channel Map'
    value.0 0
    value.1 0
    value.2 0
    value.3 0
    value.4 0
    value.5 0
    value.6 0
    value.7 0
    comment {
    access 'read write'
    type INTEGER
    count 8
    range '0 - 36'
    }
    }
    control.42 {
    iface PCM
    device 8
    name 'Playback Channel Map'
    value.0 0
    value.1 0
    value.2 0
    value.3 0
    value.4 0
    value.5 0
    value.6 0
    value.7 0
    comment {
    access 'read write'
    type INTEGER
    count 8
    range '0 - 36'
    }
    }
    control.43 {
    iface PCM
    device 9
    name 'Playback Channel Map'
    value.0 0
    value.1 0
    value.2 0
    value.3 0
    value.4 0
    value.5 0
    value.6 0
    value.7 0
    comment {
    access 'read write'
    type INTEGER
    count 8
    range '0 - 36'
    }
    }
    control.44 {
    iface MIXER
    name 'PCM Playback Volume'
    value.0 253
    value.1 253
    comment {
    access 'read write user'
    type INTEGER
    count 2
    range '0 - 255'
    tlv '0000000100000008ffffec1400000014'
    dbmin -5100
    dbmax 0
    dbvalue.0 -40
    dbvalue.1 -40
    }
    }
    }
    --endcollapse--


    !!All Loaded Modules
    !!------------------

    ac97_bus
    acpi_pad
    acpi_tad
    acpi_thermal_rel
    aesni_intel
    af_alg
    algif_hash
    algif_skcipher
    autofs4
    binfmt_misc
    blake2b_generic
    bluetooth
    bnep
    br_netfilter
    bridge
    btbcm
    btintel
    btmtk
    btrfs
    btrtl
    btusb
    ccm
    cec
    cfg80211
    cmac
    coretemp
    crc32_pclmul
    crct10dif_pclmul
    cryptd
    crypto_simd
    dmi_sysfs
    drm
    drm_buddy
    drm_display_helper
    drm_kms_helper
    drm_shmem_helper
    drm_ttm_helper
    ecc
    ecdh_generic
    efi_pstore
    ghash_clmulni_intel
    hid
    hid_generic
    hid_multitouch
    hid_sensor_als
    hid_sensor_custom
    hid_sensor_hub
    hid_sensor_iio_common
    hid_sensor_trigger
    i2c_algo_bit
    i2c_hid
    i2c_hid_acpi
    i2c_i801
    i2c_smbus
    i915
    iTCO_vendor_support
    iTCO_wdt
    idma64
    industrialio
    industrialio_triggered_buffer
    input_leds
    int3400_thermal
    int3403_thermal
    int340x_thermal_zone
    intel_cstate
    intel_ish_ipc
    intel_ishtp
    intel_ishtp_hid
    intel_lpss
    intel_lpss_pci
    intel_pmc_bxt
    intel_pmc_core
    intel_powerclamp
    intel_rapl_common
    intel_rapl_msr
    intel_uncore_frequency
    intel_uncore_frequency_common
    intel_vpu
    intel_vsec
    ip_tables
    iwlmvm
    iwlwifi
    joydev
    kfifo_buf
    kvm
    kvm_intel
    libarc4
    libcrc32c
    llc
    lp
    mac80211
    mac_hid
    mc
    nf_conntrack
    nf_conntrack_netlink
    nf_defrag_ipv4
    nf_defrag_ipv6
    nf_nat
    nf_tables
    nfnetlink
    nft_chain_nat
    nft_compat
    nls_iso8859_1
    overlay
    parport
    parport_pc
    pcspkr
    pinctrl_meteorlake
    pmt_class
    pmt_telemetry
    polyval_clmulni
    polyval_generic
    ppdev
    processor_thermal_device
    processor_thermal_device_pci
    processor_thermal_mbox
    processor_thermal_power_floor
    processor_thermal_rapl
    processor_thermal_rfim
    processor_thermal_wt_hint
    processor_thermal_wt_req
    qrtr
    raid6_pq
    rapl
    rfcomm
    serio_raw
    sha1_ssse3
    sha256_ssse3
    sha512_ssse3
    snd
    snd_compress
    snd_hda_codec
    snd_hda_codec_generic
    snd_hda_codec_hdmi
    snd_hda_codec_realtek
    snd_hda_core
    snd_hda_ext_core
    snd_hda_intel
    snd_hda_scodec_component
    snd_hrtimer
    snd_hwdep
    snd_intel_dspcfg
    snd_intel_sdw_acpi
    snd_pcm
    snd_pcm_dmaengine
    snd_seq
    snd_seq_device
    snd_seq_dummy
    snd_soc_acpi
    snd_soc_acpi_intel_match
    snd_soc_core
    snd_soc_hdac_hda
    snd_sof
    snd_sof_intel_hda
    snd_sof_intel_hda_common
    snd_sof_intel_hda_mlink
    snd_sof_pci
    snd_sof_pci_intel_mtl
    snd_sof_utils
    snd_sof_xtensa_dsp
    snd_timer
    soundcore
    soundwire_bus
    soundwire_cadence
    soundwire_generic_allocation
    soundwire_intel
    st
    stp
    thunderbolt
    ttm
    typec
    typec_ucsi
    ucsi_acpi
    uvc
    uvcvideo
    vboxdrv
    vboxnetadp
    vboxnetflt
    vfs_monitor
    video
    videobuf2_common
    videobuf2_memops
    videobuf2_v4l2
    videobuf2_vmalloc
    videodev
    vmwgfx
    wmi
    wmi_bmof
    x86_pkg_temp_thermal
    x_tables
    xfrm_algo
    xfrm_user
    xhci_pci
    xhci_pci_renesas
    xor
    xt_MASQUERADE
    xt_addrtype
    xt_conntrack


    !!Sysfs Files
    !!-----------

    /sys/class/sound/hwC0D0/init_pin_configs:
    0x12 0x40000000
    0x13 0x411111f0
    0x14 0x90170110
    0x18 0x411111f0
    0x19 0x04a11040
    0x1a 0x411111f0
    0x1b 0x411111f0
    0x1d 0x40679a2d
    0x1e 0x411111f0
    0x21 0x04211020

    /sys/class/sound/hwC0D0/driver_pin_configs:

    /sys/class/sound/hwC0D0/user_pin_configs:

    /sys/class/sound/hwC0D0/init_verbs:

    /sys/class/sound/hwC0D0/hints:

    /sys/class/sound/hwC0D2/init_pin_configs:
    0x04 0x18560010
    0x06 0x18560010
    0x08 0x18560010
    0x0a 0x18560010
    0x0b 0x18560010
    0x0c 0x18560010
    0x0d 0x18560010
    0x0e 0x18560010
    0x0f 0x18560010

    /sys/class/sound/hwC0D2/driver_pin_configs:

    /sys/class/sound/hwC0D2/user_pin_configs:

    /sys/class/sound/hwC0D2/init_verbs:

    /sys/class/sound/hwC0D2/hints:


    !!ALSA/HDA dmesg
    !!--------------

    [    0.000000] Linux version 6.9.6-amd64-desktop-rolling (root@deepinci-amd7) (gcc (Deepin 13.2.0-3deepin3) 13.2.0, GNU ld (GNU Binutils for Deepin) 2.41) #23.01.01.02 SMP PREEMPT_DYNAMIC Tue Jul 23 12:20:02 CST 2024
    [    0.000000] Command line: BOOT_IMAGE=/boot/vmlinuz-6.9.6-amd64-desktop-rolling root=UUID=da00f3d6-4bb5-4509-a697-4a9ac1ffc380 ro splash quiet snd_hda_intel.dmic_detect=0 DEEPIN_GFXMODE=
    [    0.000000] KERNEL supported cpus:
    --
    [    0.047466] pcpu-alloc: [0] 16 17 -- --
    [    0.047479] Kernel command line: BOOT_IMAGE=/boot/vmlinuz-6.9.6-amd64-desktop-rolling root=UUID=da00f3d6-4bb5-4509-a697-4a9ac1ffc380 ro splash quiet snd_hda_intel.dmic_detect=0 DEEPIN_GFXMODE=
    [    0.047553] Unknown kernel command line parameters "splash BOOT_IMAGE=/boot/vmlinuz-6.9.6-amd64-desktop-rolling DEEPIN_GFXMODE=", will be passed to user space.
    --
    [    4.085320] hid-multitouch 0018:27C6:0F90.0001: input,hidraw0: I2C HID v1.00 Mouse [GXTP7300:00 27C6:0F90] on i2c-GXTP7300:00
    [    4.096757] snd_hda_intel 0000:00:1f.3: dmic_detect option is deprecated, pass snd-intel-dspcfg.dsp_driver=1 option instead
    [    4.096782] snd_hda_intel 0000:00:1f.3: enabling device (0000 -> 0002)
    [    4.097058] snd_hda_intel 0000:00:1f.3: bound 0000:00:02.0 (ops i915_audio_component_bind_ops [i915])
    [    4.102949] usbcore: registered new interface driver uvcvideo
    --
    [    4.121182] thermal thermal_zone10: failed to read out thermal zone (-61)
    [    4.129154] snd_hda_codec_realtek hdaudioC0D0: autoconfig for ALC256: line_outs=1 (0x14/0x0/0x0/0x0/0x0) type:speaker
    [    4.129168] snd_hda_codec_realtek hdaudioC0D0:    speaker_outs=0 (0x0/0x0/0x0/0x0/0x0)
    [    4.129170] snd_hda_codec_realtek hdaudioC0D0:    hp_outs=1 (0x21/0x0/0x0/0x0/0x0)
    [    4.129170] snd_hda_codec_realtek hdaudioC0D0:    mono: mono_out=0x0
    [    4.129171] snd_hda_codec_realtek hdaudioC0D0:    inputs:
    [    4.129172] snd_hda_codec_realtek hdaudioC0D0:      Mic=0x19
    [    4.129616] iwlwifi 0000:00:14.3: WRT: Invalid buffer destination
    [    4.200114] input: HDA Intel PCH Mic as /devices/pci0000:00/0000:00:1f.3/sound/card0/input12
    [    4.200177] input: HDA Intel PCH Headphone as /devices/pci0000:00/0000:00:1f.3/sound/card0/input13
    [    4.200240] input: HDA Intel PCH HDMI/DP,pcm=3 as /devices/pci0000:00/0000:00:1f.3/sound/card0/input14
    [    4.200279] input: HDA Intel PCH HDMI/DP,pcm=7 as /devices/pci0000:00/0000:00:1f.3/sound/card0/input15
    [    4.200326] input: HDA Intel PCH HDMI/DP,pcm=8 as /devices/pci0000:00/0000:00:1f.3/sound/card0/input16
    [    4.200360] input: HDA Intel PCH HDMI/DP,pcm=9 as /devices/pci0000:00/0000:00:1f.3/sound/card0/input17
    [    4.291464] iwlwifi 0000:00:14.3: Not valid error log pointer 0x0024B5C0 for RT uCode


    !!Packages installed
    !!--------------------

    ii  alsa-topology-conf                                1.2.5.1-3                                all          ALSA topology configuration files
    ii  alsa-ucm-conf                                     1.2.12-1deepin1                          all          ALSA Use Case Manager configuration files
    ii  alsa-utils                                        1.2.12-1                                 amd64        Utilities for configuring and using ALSA

    Reply View the author
