    • [Kernel/Drive] 升级20.2后，华硕B460 PRO 集成的 AX200 网卡只能连接2.4G WIFI了
    Product Feedback 1636 views · 10 replies ·
    Tofloor
    poster avatar
    swish
    deepin
    2021-04-01 18:47
    Author

    升级前是正常的，升级后就只能连接2.4G，速度也下来了。

    Reply Favorite View the author
    All Replies
    虫子集花
    deepin
    2021-04-01 18:57
    #1

    能用都妥了哈哈

    Reply View the author
    swish
    deepin
    2021-04-01 19:10
    #2
    虫子集花：

    能用都妥了哈哈

    现在不知道怎么能改成正常的WIFI6模式

    Reply View the author
    swish
    deepin
    2021-04-01 21:12
    #3

    dmsg|grep iwlwifi 的输出

    [    3.858860] iwlwifi 0000:02:00.0: enabling device (0000 -> 0002)
    [    3.868803] iwlwifi 0000:02:00.0: api flags index 2 larger than supported by driver
    [    3.868813] iwlwifi 0000:02:00.0: TLV_FW_FSEQ_VERSION: FSEQ Version: 89.3.35.22
    [    3.868983] iwlwifi 0000:02:00.0: loaded firmware version 59.601f3a66.0 cc-a0-59.ucode op_mode iwlmvm
    [    4.008096] iwlwifi 0000:02:00.0: Detected Intel(R) Wi-Fi 6 AX200 160MHz, REV=0x340
    [    4.193382] iwlwifi 0000:02:00.0: base HW address: 74:d8:3e:cf:68:2c
    [    4.206572] iwlwifi 0000:02:00.0 wlp2s0: renamed from wlan0



    Reply View the author
    swish
    deepin
    2021-04-01 21:14
    #4

    iw list 的输出，5G部分输出基本上是 no IR、disabled

    Reply View the author
    Ziggy
    deepin
    2021-04-02 08:00
    #5

    内核版本多少?

    Reply View the author
    swish
    deepin
    2021-04-02 18:18
    #6
    Ziggy：

    内核版本多少?

    升级前 5.10.5，升级后 5.11.1

    Reply View the author
    swish
    deepin
    2021-04-02 18:23
    #7

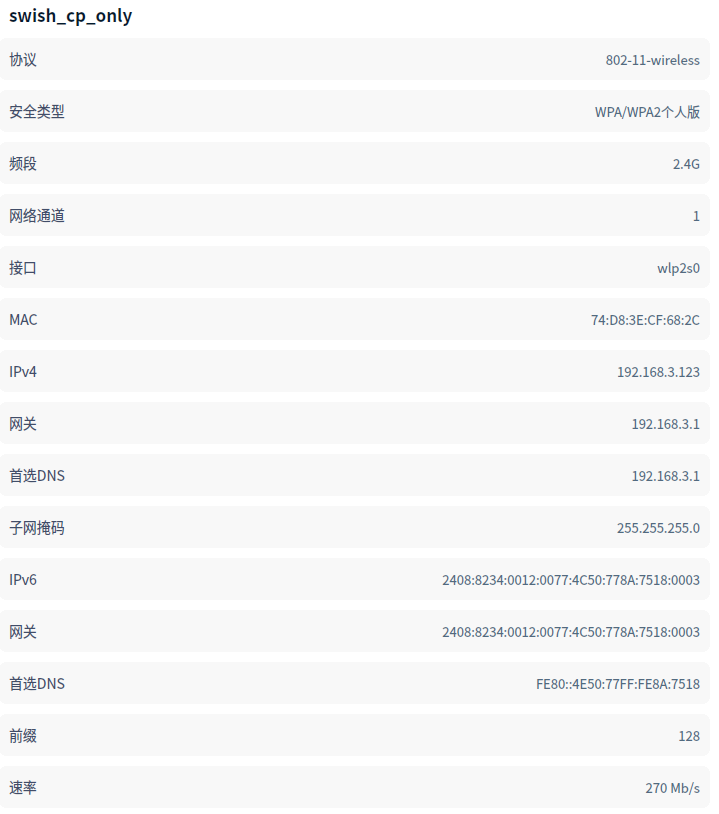

    现在的网络状态

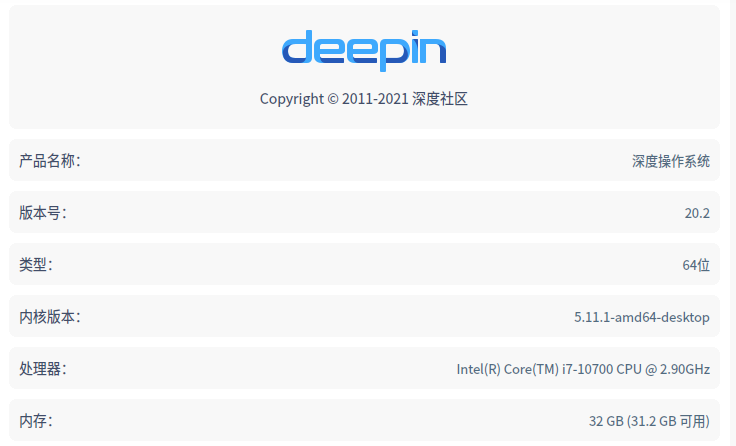

    系统状态：

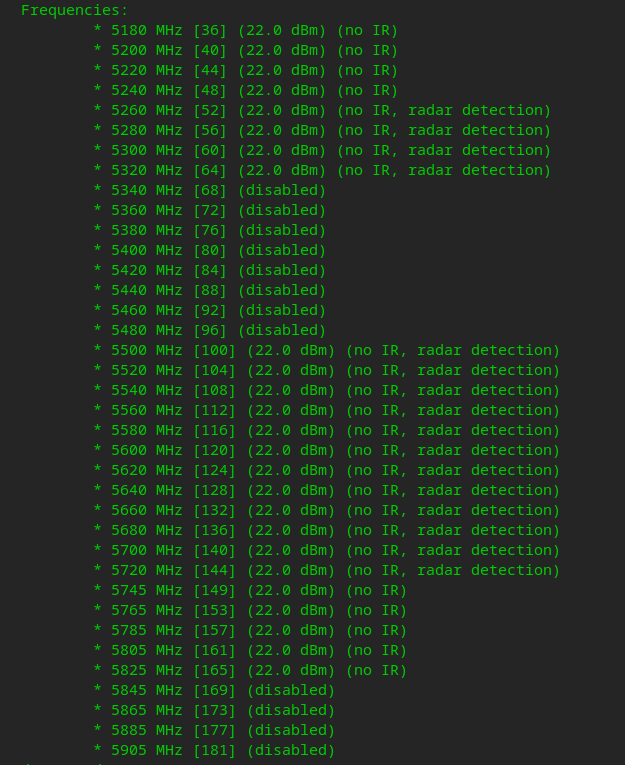

    iw list 输出

    swish@swish-B460-10700:~$ iw reg get
global
country CN: DFS-FCC
        (2402 - 2482 @ 40), (N/A, 20), (N/A)
        (5170 - 5250 @ 80), (N/A, 23), (N/A), AUTO-BW
        (5250 - 5330 @ 80), (N/A, 23), (0 ms), DFS, AUTO-BW
        (5735 - 5835 @ 80), (N/A, 30), (N/A)
        (57240 - 59400 @ 2160), (N/A, 28), (N/A)
        (59400 - 63720 @ 2160), (N/A, 44), (N/A)
        (63720 - 65880 @ 2160), (N/A, 28), (N/A)

phy#0 (self-managed)
country CN: DFS-UNSET
        (2402 - 2437 @ 40), (6, 22), (N/A), AUTO-BW, NO-HT40MINUS, NO-80MHZ, NO-160MHZ
        (2422 - 2462 @ 40), (6, 22), (N/A), AUTO-BW, NO-80MHZ, NO-160MHZ
        (2447 - 2482 @ 40), (6, 22), (N/A), AUTO-BW, NO-HT40PLUS, NO-80MHZ, NO-160MHZ
        (5170 - 5190 @ 160), (6, 22), (N/A), NO-OUTDOOR, AUTO-BW, IR-CONCURRENT, NO-HT40MINUS, PASSIVE-SCAN
        (5190 - 5210 @ 160), (6, 22), (N/A), NO-OUTDOOR, AUTO-BW, IR-CONCURRENT, NO-HT40PLUS, PASSIVE-SCAN
        (5210 - 5230 @ 160), (6, 22), (N/A), NO-OUTDOOR, AUTO-BW, IR-CONCURRENT, NO-HT40MINUS, PASSIVE-SCAN
        (5230 - 5250 @ 160), (6, 22), (N/A), NO-OUTDOOR, AUTO-BW, IR-CONCURRENT, NO-HT40PLUS, PASSIVE-SCAN
        (5250 - 5270 @ 160), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40MINUS, PASSIVE-SCAN
        (5270 - 5290 @ 160), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40PLUS, PASSIVE-SCAN
        (5290 - 5310 @ 160), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40MINUS, PASSIVE-SCAN
        (5310 - 5330 @ 160), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40PLUS, PASSIVE-SCAN
        (5490 - 5510 @ 240), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40MINUS, PASSIVE-SCAN
        (5510 - 5530 @ 240), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40PLUS, PASSIVE-SCAN
        (5530 - 5550 @ 240), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40MINUS, PASSIVE-SCAN
        (5550 - 5570 @ 240), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40PLUS, PASSIVE-SCAN
        (5570 - 5590 @ 240), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40MINUS, PASSIVE-SCAN
        (5590 - 5610 @ 240), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40PLUS, PASSIVE-SCAN
        (5610 - 5630 @ 240), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40MINUS, PASSIVE-SCAN
        (5630 - 5650 @ 240), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40PLUS, PASSIVE-SCAN
        (5650 - 5670 @ 80), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40MINUS, NO-160MHZ, PASSIVE-SCAN
        (5670 - 5690 @ 80), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40PLUS, NO-160MHZ, PASSIVE-SCAN
        (5690 - 5710 @ 80), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40MINUS, NO-160MHZ, PASSIVE-SCAN
        (5710 - 5730 @ 80), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40PLUS, NO-160MHZ, PASSIVE-SCAN
        (5735 - 5755 @ 80), (6, 22), (N/A), AUTO-BW, IR-CONCURRENT, NO-HT40MINUS, NO-160MHZ, PASSIVE-SCAN
        (5755 - 5775 @ 80), (6, 22), (N/A), AUTO-BW, IR-CONCURRENT, NO-HT40PLUS, NO-160MHZ, PASSIVE-SCAN
        (5775 - 5795 @ 80), (6, 22), (N/A), AUTO-BW, IR-CONCURRENT, NO-HT40MINUS, NO-160MHZ, PASSIVE-SCAN
        (5795 - 5815 @ 80), (6, 22), (N/A), AUTO-BW, IR-CONCURRENT, NO-HT40PLUS, NO-160MHZ, PASSIVE-SCAN
        (5815 - 5835 @ 20), (6, 22), (N/A), AUTO-BW, IR-CONCURRENT, NO-HT40MINUS, NO-HT40PLUS, NO-80MHZ, NO-160MHZ, PASSIVE-SCAN
    Reply View the author
    Ziggy
    deepin
    2021-04-03 23:49
    #8
    swish：

    现在的网络状态

    系统状态：

    iw list 输出

    swish@swish-B460-10700:~$ iw reg get
global
country CN: DFS-FCC
        (2402 - 2482 @ 40), (N/A, 20), (N/A)
        (5170 - 5250 @ 80), (N/A, 23), (N/A), AUTO-BW
        (5250 - 5330 @ 80), (N/A, 23), (0 ms), DFS, AUTO-BW
        (5735 - 5835 @ 80), (N/A, 30), (N/A)
        (57240 - 59400 @ 2160), (N/A, 28), (N/A)
        (59400 - 63720 @ 2160), (N/A, 44), (N/A)
        (63720 - 65880 @ 2160), (N/A, 28), (N/A)

phy#0 (self-managed)
country CN: DFS-UNSET
        (2402 - 2437 @ 40), (6, 22), (N/A), AUTO-BW, NO-HT40MINUS, NO-80MHZ, NO-160MHZ
        (2422 - 2462 @ 40), (6, 22), (N/A), AUTO-BW, NO-80MHZ, NO-160MHZ
        (2447 - 2482 @ 40), (6, 22), (N/A), AUTO-BW, NO-HT40PLUS, NO-80MHZ, NO-160MHZ
        (5170 - 5190 @ 160), (6, 22), (N/A), NO-OUTDOOR, AUTO-BW, IR-CONCURRENT, NO-HT40MINUS, PASSIVE-SCAN
        (5190 - 5210 @ 160), (6, 22), (N/A), NO-OUTDOOR, AUTO-BW, IR-CONCURRENT, NO-HT40PLUS, PASSIVE-SCAN
        (5210 - 5230 @ 160), (6, 22), (N/A), NO-OUTDOOR, AUTO-BW, IR-CONCURRENT, NO-HT40MINUS, PASSIVE-SCAN
        (5230 - 5250 @ 160), (6, 22), (N/A), NO-OUTDOOR, AUTO-BW, IR-CONCURRENT, NO-HT40PLUS, PASSIVE-SCAN
        (5250 - 5270 @ 160), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40MINUS, PASSIVE-SCAN
        (5270 - 5290 @ 160), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40PLUS, PASSIVE-SCAN
        (5290 - 5310 @ 160), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40MINUS, PASSIVE-SCAN
        (5310 - 5330 @ 160), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40PLUS, PASSIVE-SCAN
        (5490 - 5510 @ 240), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40MINUS, PASSIVE-SCAN
        (5510 - 5530 @ 240), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40PLUS, PASSIVE-SCAN
        (5530 - 5550 @ 240), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40MINUS, PASSIVE-SCAN
        (5550 - 5570 @ 240), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40PLUS, PASSIVE-SCAN
        (5570 - 5590 @ 240), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40MINUS, PASSIVE-SCAN
        (5590 - 5610 @ 240), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40PLUS, PASSIVE-SCAN
        (5610 - 5630 @ 240), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40MINUS, PASSIVE-SCAN
        (5630 - 5650 @ 240), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40PLUS, PASSIVE-SCAN
        (5650 - 5670 @ 80), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40MINUS, NO-160MHZ, PASSIVE-SCAN
        (5670 - 5690 @ 80), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40PLUS, NO-160MHZ, PASSIVE-SCAN
        (5690 - 5710 @ 80), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40MINUS, NO-160MHZ, PASSIVE-SCAN
        (5710 - 5730 @ 80), (6, 22), (0 ms), DFS, AUTO-BW, NO-HT40PLUS, NO-160MHZ, PASSIVE-SCAN
        (5735 - 5755 @ 80), (6, 22), (N/A), AUTO-BW, IR-CONCURRENT, NO-HT40MINUS, NO-160MHZ, PASSIVE-SCAN
        (5755 - 5775 @ 80), (6, 22), (N/A), AUTO-BW, IR-CONCURRENT, NO-HT40PLUS, NO-160MHZ, PASSIVE-SCAN
        (5775 - 5795 @ 80), (6, 22), (N/A), AUTO-BW, IR-CONCURRENT, NO-HT40MINUS, NO-160MHZ, PASSIVE-SCAN
        (5795 - 5815 @ 80), (6, 22), (N/A), AUTO-BW, IR-CONCURRENT, NO-HT40PLUS, NO-160MHZ, PASSIVE-SCAN
        (5815 - 5835 @ 20), (6, 22), (N/A), AUTO-BW, IR-CONCURRENT, NO-HT40MINUS, NO-HT40PLUS, NO-80MHZ, NO-160MHZ, PASSIVE-SCAN

    不排除是内核不兼容，降级内核看看怎么样

    Reply View the author
    swish
    deepin
    2021-04-08 22:33
    #9

    将 AX3 Pro 路由中的 5G 兼容模式打开，可以连接到 5G，但无法连接上 WIFI6 呀，看起来是兼容问题～～～～

    Reply View the author
    deepin-mq
    deepin
    2021-06-01 18:53
    #10
    我们这边设备测试未复现，需要帮忙提供下信息，便于快速定位分析问题。信息包括如下：

    1、系统版本号
    打开终端，输入命令：cat /etc/os-version

    2、设备信息
    打开“设备管理器”应用->在[概况]界面单击鼠标右键->选择[导出]，导出设备信息txt文档

    3、复现步骤
    描述问题的具体复现步骤


    完成以上信息后，复制回复下，谢谢。
    Reply View the author
