    • [software development] 有没有人体验过系统ppocrlabel出现“xcb”错误的问题？
    Technology Exchange 387 views · 5 replies ·
    Tofloor
    poster avatar
    Mashiro
    deepin
    2024-11-12 18:37
    Author

    我尝试使用deepin v23 社区版安装运行 PPOCRLabel（https://github.com/PFCCLab/PPOCRLabel.git），发现无法运行，命令行提示

    我安装的依赖列表如下


    albucore==0.0.13
albumentations==1.4.10
annotated-types==0.7.0
anyio==4.6.2.post1
astor==0.8.1
beautifulsoup4==4.12.3
cachetools==5.5.0
certifi==2024.8.30
charset-normalizer==3.4.0
contourpy==1.3.0
cssselect==1.2.0
cssutils==2.11.1
cycler==0.12.1
Cython==3.0.11
decorator==5.1.1
et_xmlfile==2.0.0
exceptiongroup==1.2.2
fire==0.7.0
fonttools==4.54.1
h11==0.14.0
httpcore==1.0.6
httpx==0.27.2
idna==3.10
imageio==2.36.0
imgaug==0.4.0
joblib==1.4.2
kiwisolver==1.4.7
lazy_loader==0.4
lmdb==1.5.1
lxml==5.3.0
matplotlib==3.9.2
more-itertools==10.5.0
networkx==3.4.2
numpy==1.26.4
opencv-contrib-python==4.10.0.84
opencv-python==4.10.0.84
opencv-python-headless==4.10.0.84
openpyxl==3.1.5
opt-einsum==3.3.0
packaging==24.2
paddleocr==2.9.1
paddlepaddle==3.0.0b2
pandas==2.2.3
pillow==11.0.0
PPOCRLabel==2.1.11
premailer==3.10.0
protobuf==5.28.3
pyclipper==1.3.0.post6
pydantic==2.9.2
pydantic_core==2.23.4
pyparsing==3.2.0
PyQt5==5.15.11
PyQt5-Qt5==5.15.15
PyQt5_sip==12.15.0
python-dateutil==2.9.0.post0
python-docx==1.1.2
pytz==2024.2
PyYAML==6.0.2
RapidFuzz==3.10.1
requests==2.32.3
scikit-image==0.24.0
scikit-learn==1.5.2
scipy==1.14.1
shapely==2.0.6
six==1.16.0
sniffio==1.3.1
soupsieve==2.6
termcolor==2.5.0
threadpoolctl==3.5.0
tifffile==2024.9.20
tomli==2.1.0
tqdm==4.67.0
typing_extensions==4.12.2
tzdata==2024.2
urllib3==2.2.3



    我很想知道是不是系统的安装的C++库问题，还是我的依赖内容安装出现问题，导致的无法运行。如果能通过修改配置文件应该如何去做，太痛苦了，本菜鸟表示不服但是又拿它没办法，求诸位大佬解答一二。
    Reply Favorite View the author
    All Replies
    穿西装的万斯在统亻言
    deepin
    Backbone of ecological co-construction group
    2024-11-12 22:47
    #1
    sudo apt-get install libxkbcommon-x11-0

    看看你的 QT_QPA_PLATFORM_PLUGIN_PATH环境变量，echo一下，假如是空的话，那就在.bashrc里面加入包含 libqxcb.so的目录 ，可能是你的Python虚拟环境中的 .venv/lib/python3.10/site-packages/cv2/qt/plugins

    Reply View the author
    zccrs
    deepin
    2024-11-13 11:42
    #2

    你是直接下载的它的二进制还是源码编译的呀

    Reply View the author
    小鱼贝壳
    deepin
    2024-11-14 06:39
    #3

    没有过

    Reply View the author
    Mashiro
    deepin
    2024-11-27 10:47
    #4
    zccrs：

    你是直接下载的它的二进制还是源码编译的呀

    就是虚拟环境自动下载的libqxcb.so文件

    Reply View the author
    Mashiro
    deepin
    2024-11-27 11:14
    #5
    穿西装的万斯在统亻言：
    sudo apt-get install libxkbcommon-x11-0

    看看你的 QT_QPA_PLATFORM_PLUGIN_PATH环境变量，echo一下，假如是空的话，那就在.bashrc里面加入包含 libqxcb.so的目录 ，可能是你的Python虚拟环境中的 .venv/lib/python3.10/site-packages/cv2/qt/plugins

    我尝试让系统的export QT_QPA_PLATFORM_PLUGIN_PATH=.venv/lib/python3.10/site-packages/cv2/qt/plugins

    能够虚拟环境下直接输出环境变量：

    (.venv) Mashiro@Mashiro-PC:/media/Mashiro/inst_47/Project/python/PPOCRLabel$ echo $QT_QPA_PLATFORM_PLUGIN_PATH
/media/Mashiro/inst_47/Project/python/PPOCRLabel/.venv/lib/python3.10/site-packages/cv2/qt/plugin:

    并且libxkbcommon-x11-0已经安装过了，但是依旧提示

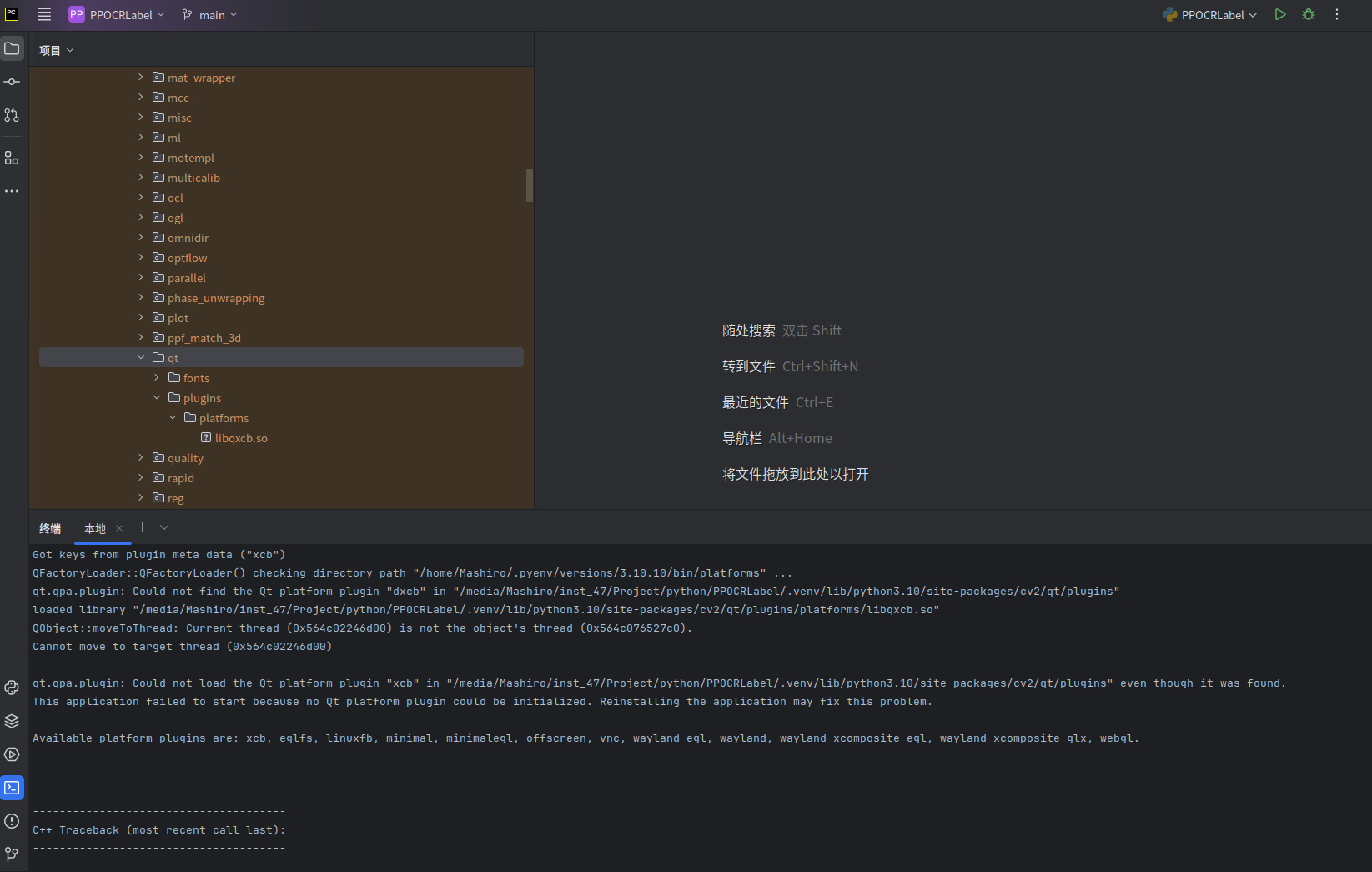

    qt.qpa.plugin: Could not load the Qt platform plugin "xcb" in "/media/Mashiro/inst_47/Project/python/PPOCRLabel/.venv/lib/python3.10/site-packages/cv2/qt/plugins" even though it was found.
This application failed to start because no Qt platform plugin could be initialized. Reinstalling the application may fix this problem.

Available platform plugins are: xcb, eglfs, linuxfb, minimal, minimalegl, offscreen, vnc, wayland-egl, wayland, wayland-xcomposite-egl, wayland-xcomposite-glx, webgl.


    我想是不是因为缺少了哪些库导致cv2的载入不全？

    Reply View the author
