    Hi everyone,

    I apologize in advance for the two posts in a row but I have another issue. I reinstalled Deepin 15.8 twice and the issue is still here.
    When installing the system I chose to use the whole disk, but in my file explorer and in the dock an external drive named 165GB (which actually appears to be 154GB) appears and cannot be ejected. It does not look like it is a partition since Gparted doesn't show a partition of that size.
    I wouldn't mind but it splits my internal storage almost in half on a machine that already does not have a lot of it.

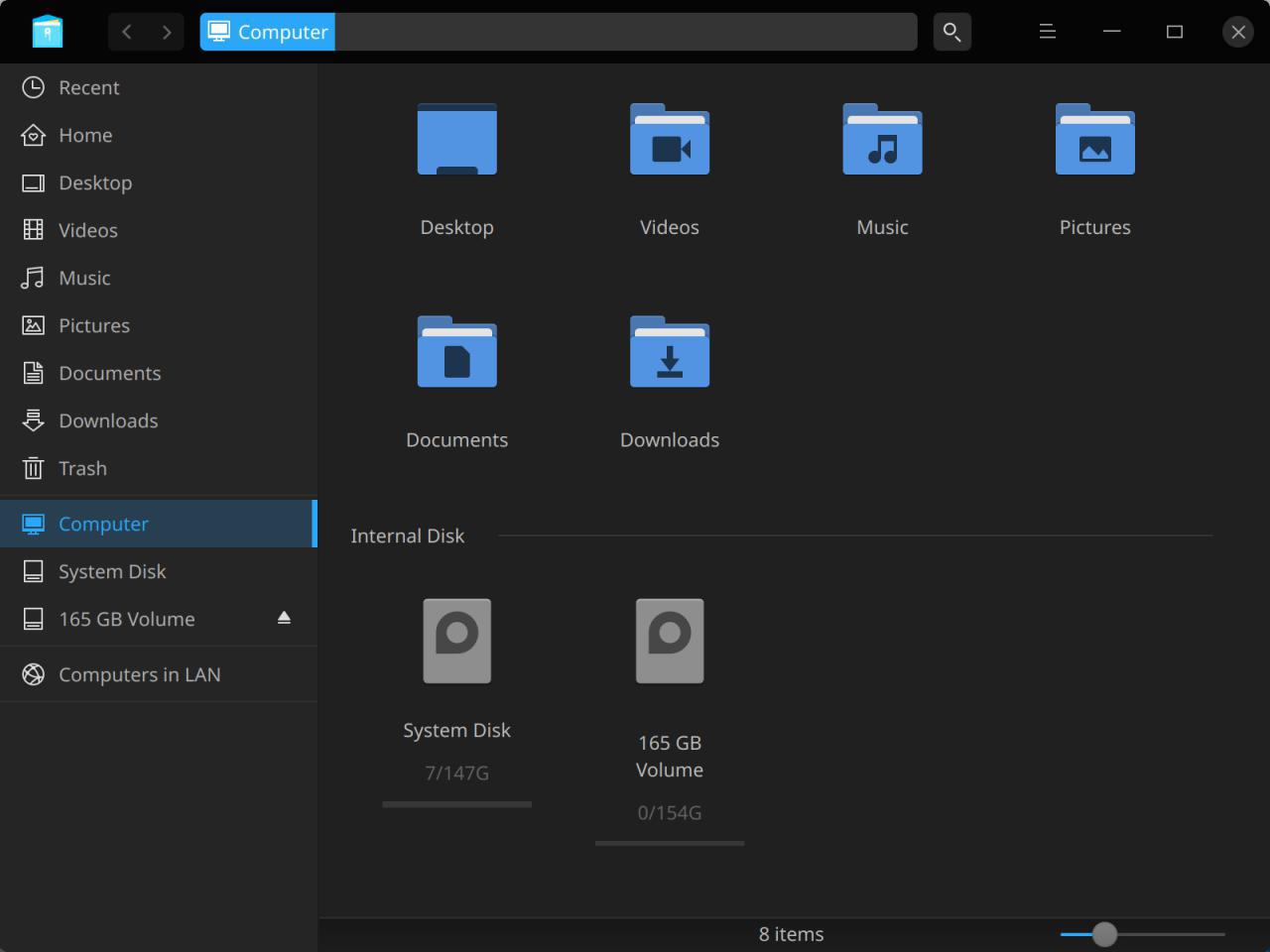

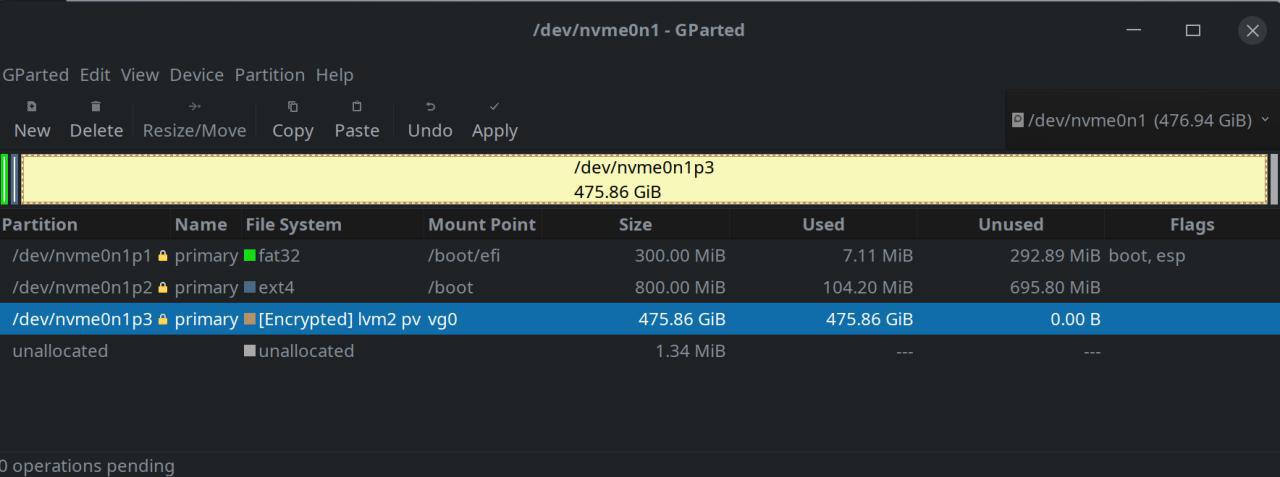

    Here is a screenshot of the file manager and Gparted:



    Reply Favorite View the author
    All Replies
    a2035274
    deepin
    2018-12-13 20:24
    #1
    本帖最后由 a2035274 于 2018-12-13 19:03 编辑

    Do you want to compress the system disk?

    Reply View the author
    a2035274
    deepin
    2018-12-13 20:26
    #2
    本帖最后由 a2035274 于 2018-12-13 19:06 编辑




    sudo lvdisplay

    1.   --- Logical volume ---
    2.   LV Path                /dev/ubuntu-vg/root
    3.   LV Name                root
    4.   VG Name                ubuntu-vg
    5.   LV UUID                CVTO9p-gEkW-hoyv-C8K8-4oVl-vBqx-emJ0DT
    6.   LV Write Access        read/write
    7.   LV Creation host, time ubuntu, 2017-10-07 17:29:47 +0800
    8.   LV Status              available
    9.   # open                 0
    10.   LV Size                30.00 GiB
    11.   Current LE             7680
    12.   Segments               1
    13.   Allocation             inherit
    14.   Read ahead sectors     auto
    15.   - currently set to     256
    16.   Block device           253:1
    17.
    18.   --- Logical volume ---
    19.   LV Path                /dev/ubuntu-vg/swap_1
    20.   LV Name                swap_1
    21.   VG Name                ubuntu-vg
    22.   LV UUID                bCWOM1-vrKU-n8OM-Nzxc-lOtX-qKP0-r1whlF
    23.   LV Write Access        read/write
    24.   LV Creation host, time ubuntu, 2017-10-07 17:30:35 +0800
    25.   LV Status              available
    26.   # open                 2
    27.   LV Size                8.00 GiB
    28.   Current LE             2048
    29.   Segments               1
    30.   Allocation             inherit
    31.   Read ahead sectors     auto
    32.   - currently set to     256
    33.   Block device           253:2
    34.
    35.   --- Logical volume ---
    36.   LV Path                /dev/ubuntu-vg/ubuntu
    37.   LV Name                ubuntu
    38.   VG Name                ubuntu-vg
    39.   LV UUID                j5KXXW-RSYX-fUxn-HWLn-vee5-3DS7-3fpfJl
    40.   LV Write Access        read/write
    41.   LV Creation host, time ubuntu, 2017-10-07 17:34:21 +0800
    42.   LV Status              available
    43.   # open                 0
    44.   LV Size                32.62 GiB
    45.   Current LE             8351
    46.   Segments               1
    47.   Allocation             inherit
    48.   Read ahead sectors     auto
    49.   - currently set to     256
    50.   Block device           253:3
    51.
    52.   --- Logical volume ---
    53.   LV Path                /dev/ubuntu-vg/deepin
    54.   LV Name                deepin
    55.   VG Name                ubuntu-vg
    56.   LV UUID                qj4jcu-xYmn-pppM-rzj8-499m-eCP3-7Hj72u
    57.   LV Write Access        read/write
    58.   LV Creation host, time G470, 2018-08-22 13:24:42 +0800
    59.   LV Status              available
    60.   # open                 1
    61.   LV Size                36.00 GiB
    62.   Current LE             9216
    63.   Segments               1
    64.   Allocation             inherit
    65.   Read ahead sectors     auto
    66.   - currently set to     256
    67.   Block device           253:0
    68.
    69.   --- Logical volume ---
    70.   LV Path                /dev/ubuntu-vg/date
    71.   LV Name                date
    72.   VG Name                ubuntu-vg
    73.   LV UUID                AZVdwh-sTE8-y9BX-jlff-xYiV-YwW1-9tIRO4
    74.   LV Write Access        read/write
    75.   LV Creation host, time G470, 2018-08-22 13:26:59 +0800
    76.   LV Status              available
    77.   # open                 1
    78.   LV Size                284.00 GiB
    79.   Current LE             72704
    80.   Segments               1
    81.   Allocation             inherit
    82.   Read ahead sectors     auto
    83.   - currently set to     256
    84.   Block device           253:4
    Copy the Code



    Reply View the author
    a2035274
    deepin
    2018-12-13 20:31
    #3
    本帖最后由 a2035274 于 2018-12-13 19:17 编辑

    I did it

    1. sudo deepin-installer-pkexec deepin-installer --conf deepin-installer.conf --auto-install
    Copy the Code

    https://bbs.deepin.org/post/146432


    deepin-installer.conf

    This file is located in /etc/


    Reply View the author
    froggo
    deepin
    2018-12-14 06:16
    #4
    Hi and thank you for the help, I really just started on Linux so I'm not 100% sure I got it, what I would like is get rid of this virtual external disk of 154G and only have the system disk with the full available storage.
    Reply View the author
    a2035274
    deepin
    2018-12-14 20:18
    #5
